Cabin Air Spring for Navistar / International Trucks

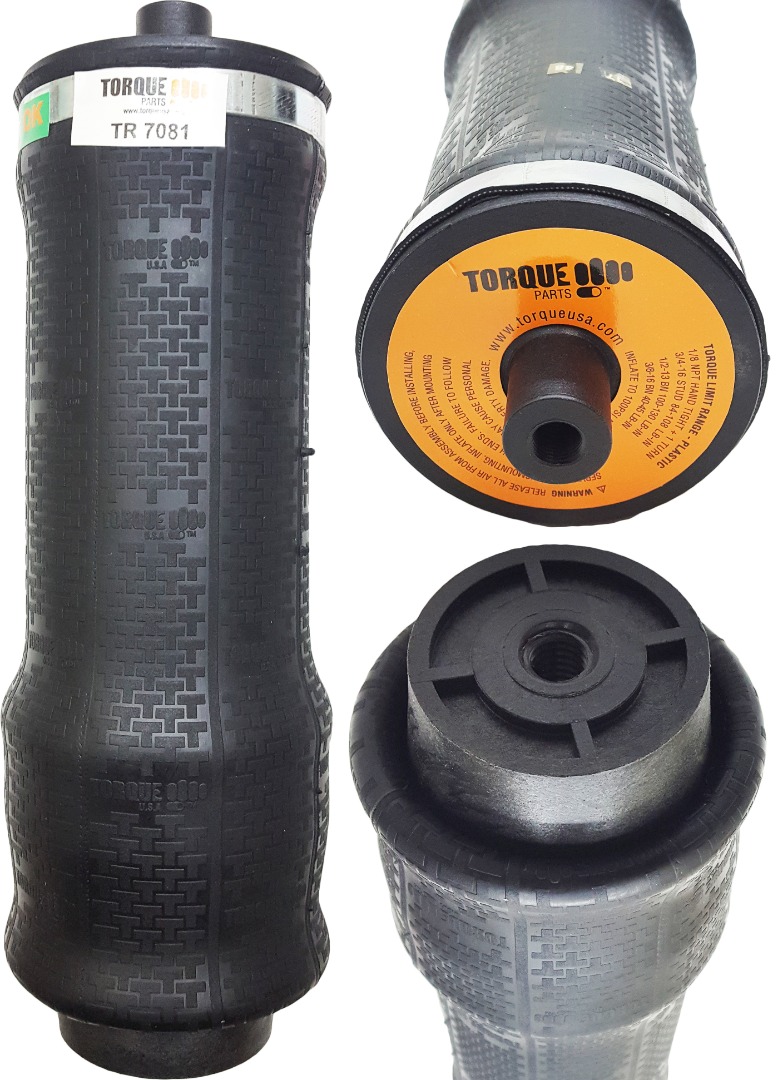

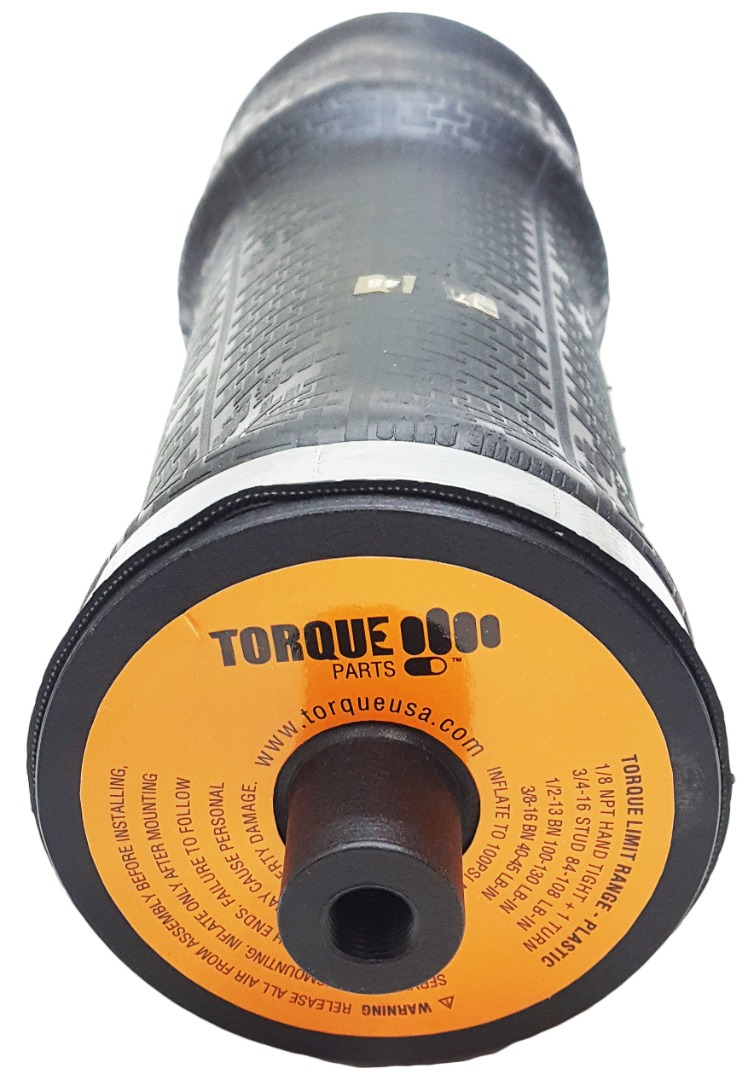

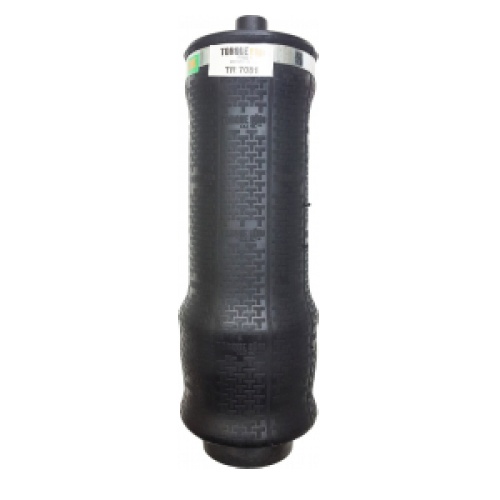

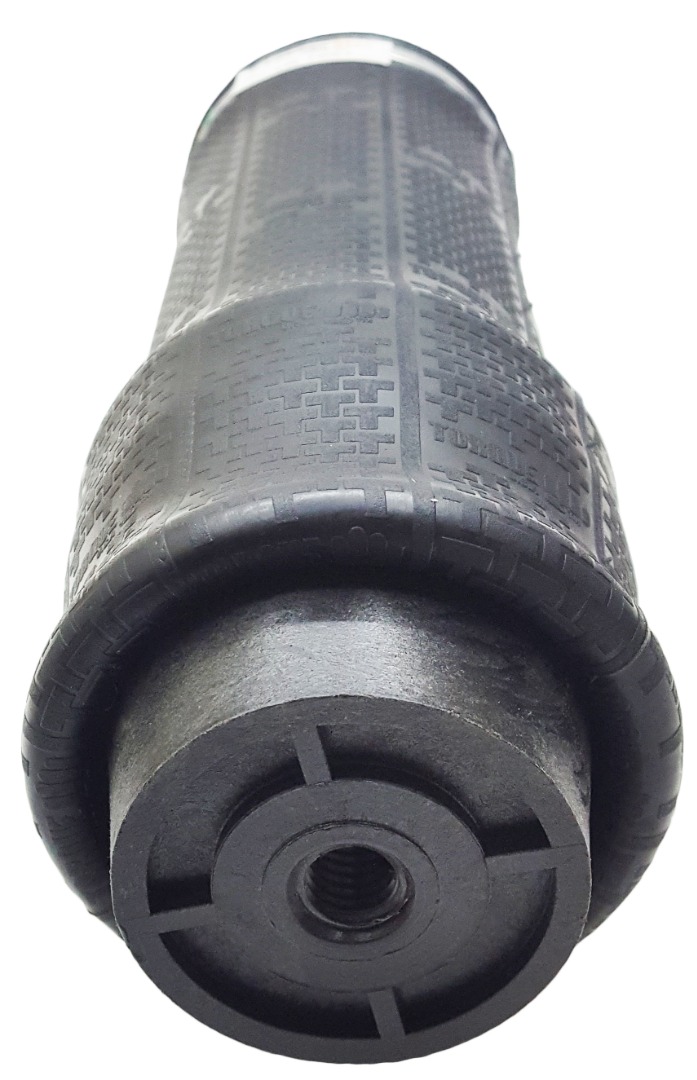

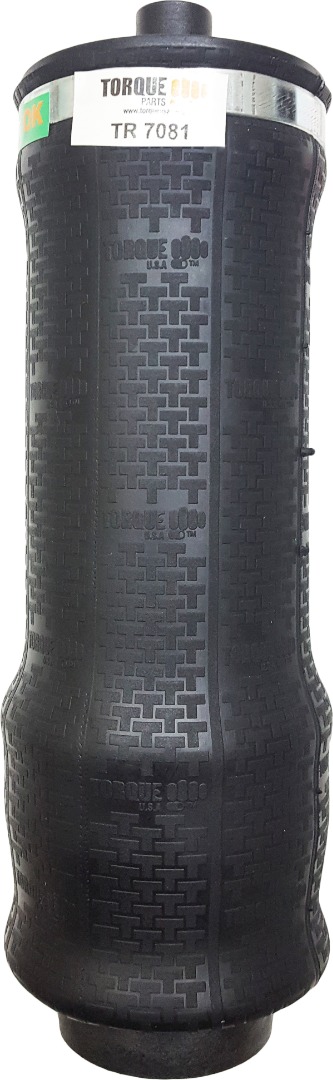

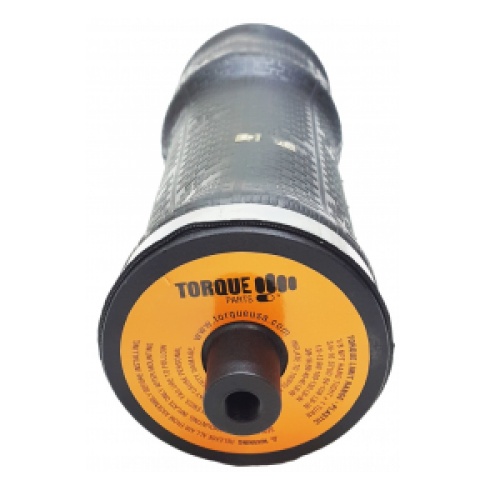

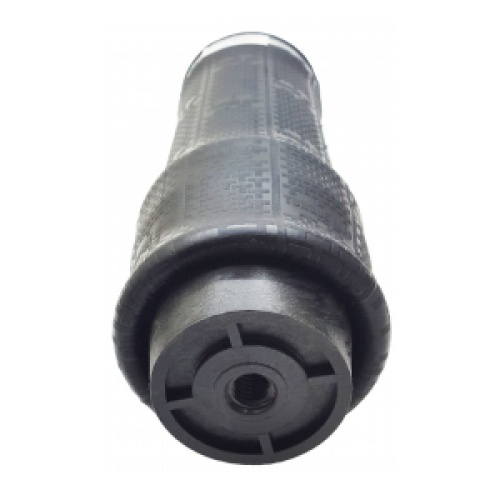

TR7081 Navistar / International Cabin Air Spring TR7081
Air Spring Type
Cabin Air Spring
BCR
11.50

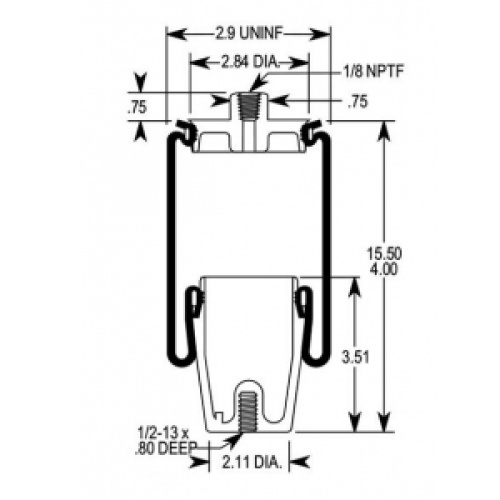

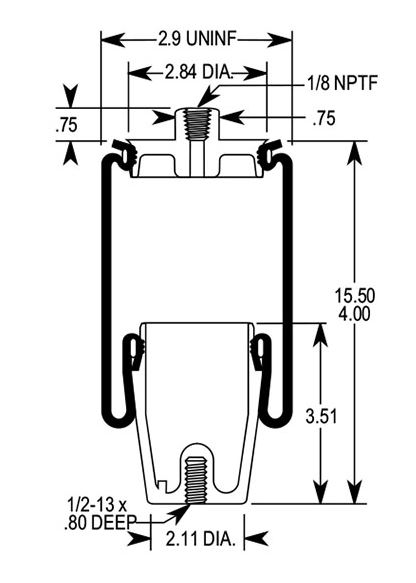

Top Plate Diameter
2.84
Piston Diameter
2.10
Bellows Diameter
2.90
Piston Height
3.51
Piston Material
Composite
Max Extended Height
15.50
Bottom Air Inlet Thread Size
3/8-16 X .80 DEEP
Minimum Compressed Height
4.00
Air Inlet Type
Male
Air Inlet Height
0.50
Top Plate Mounting Type
Air Inlet
Piston Mounting Type
Threaded Hole
Piston Threaded Hole Quantity
1
Has Inner Bumper
No
Bellows Number
YELLOW
| Navistar: | 2501300C1 |
| Link Manufacturing: | 1102-0076, 1101-0043 |
| Firestone: | W02-358-7081 |
| Goodyear: | 1S5-038 |
| Extended Height: | 15.50" |
| Compressed Height: | 4.00" |
| BCR: | 11.50" |
