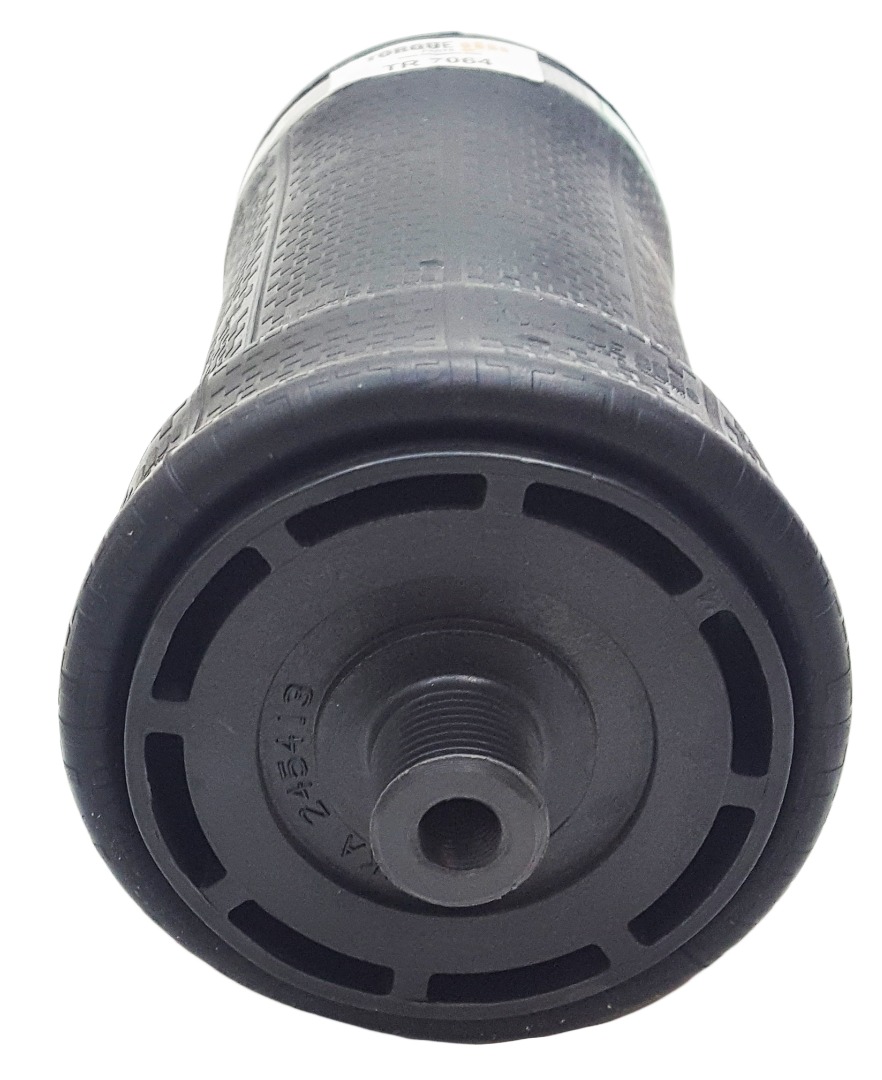

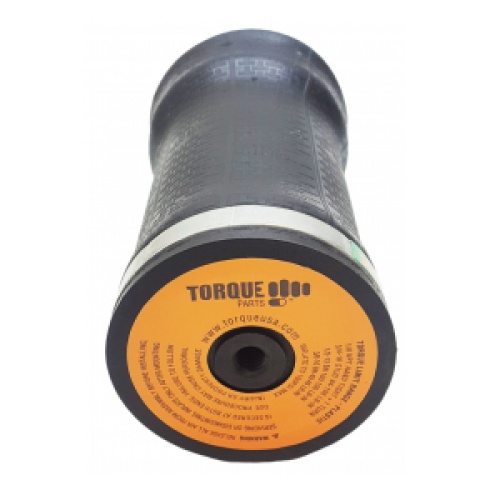

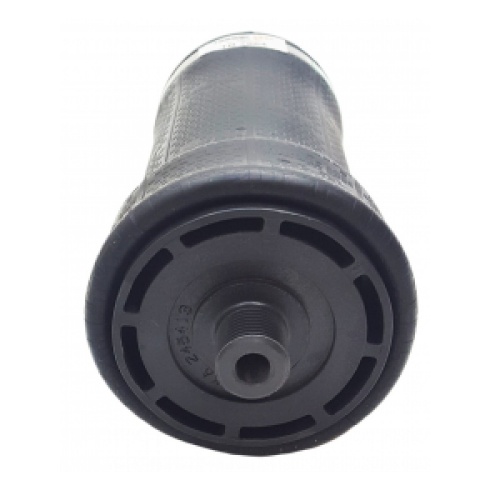

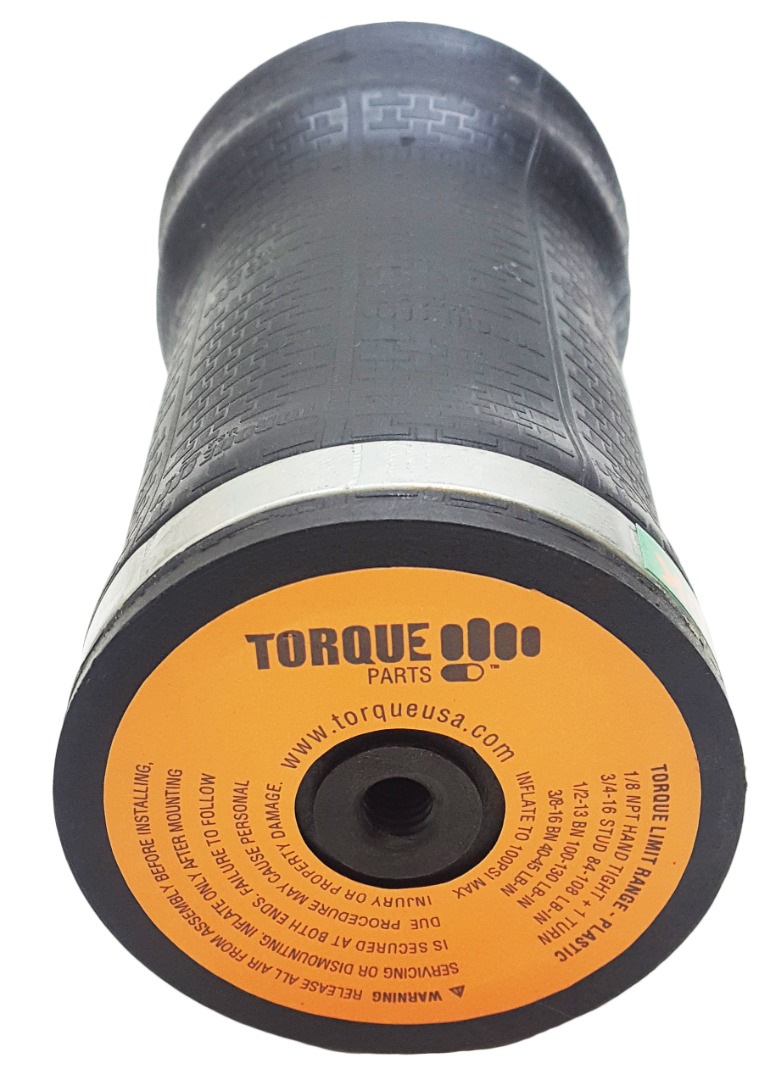

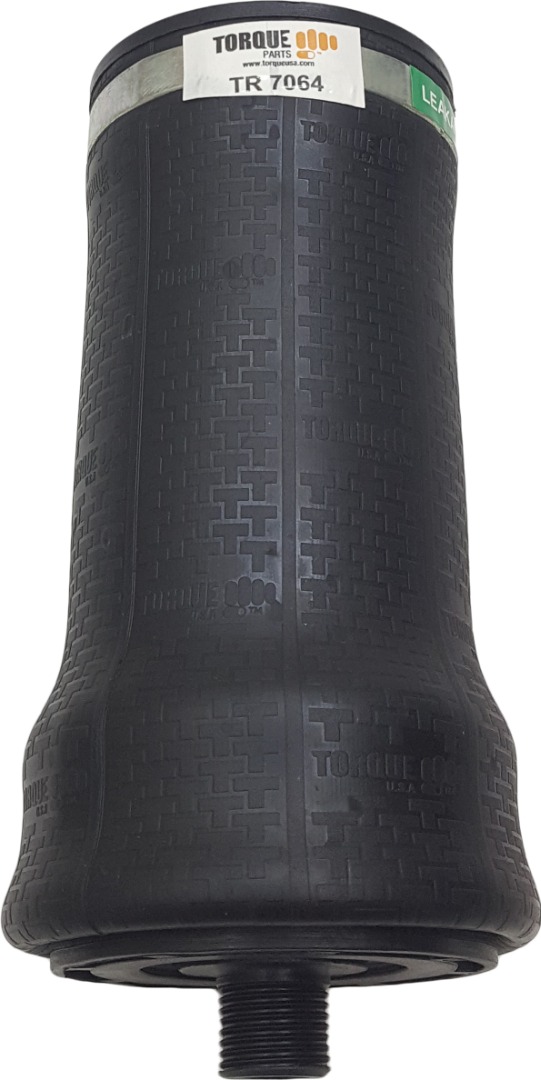

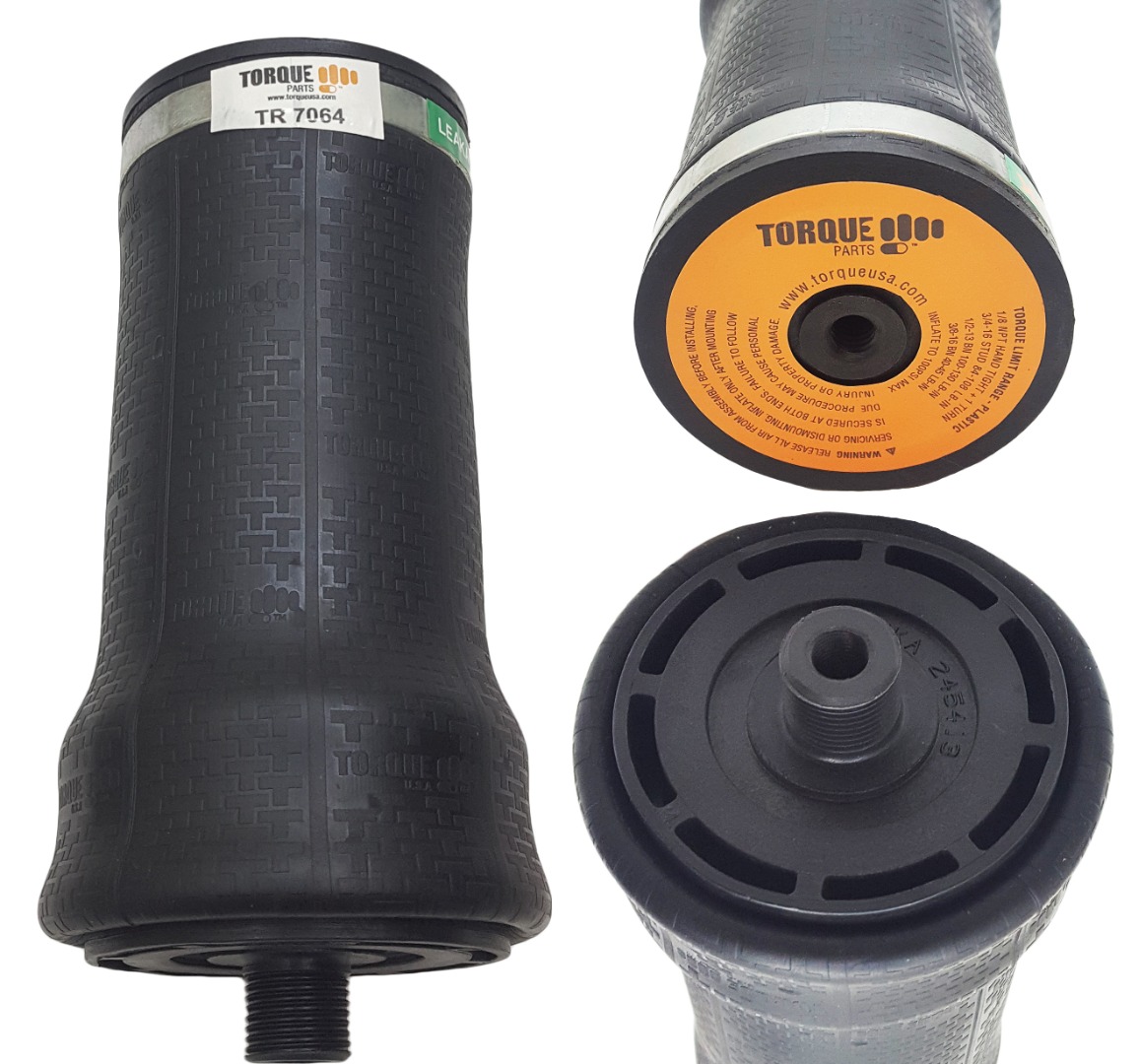

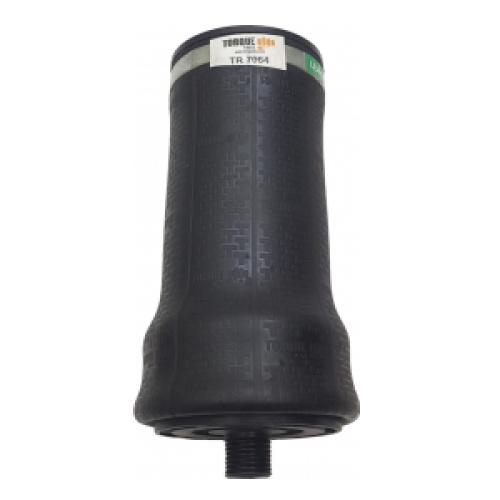

TR7064 Kenworth Cabin Air Spring

TR7064 Kenworth Cabin Air Spring TR7064

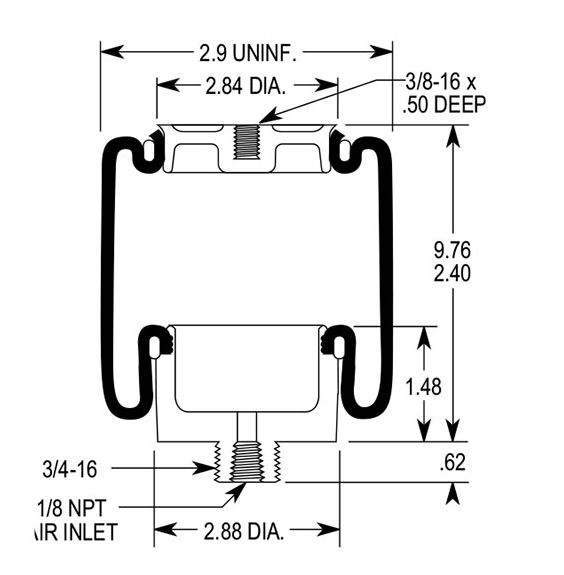

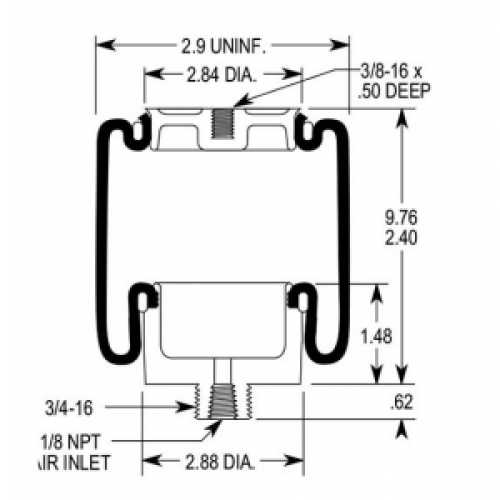

Air Spring Type Cabin Air Spring
BCR 7.75
Top Plate Diameter 2.84
Piston Diameter 2.90
Bellows Diameter 2.90
Piston Height 1.48
Piston Material Composite
Max Extended Height 9.76
Bottom Air Inlet Thread Size 1/8 NPT
Minimum Compressed Height 2.40
Air Inlet Type Male
Air Inlet Height 0.62
Top Plate Mounting Type Threaded Hole
Top Plate Threaded Hole Quantity 1
Piston Mounting Type Stud
Piston Stud Quantity 1
Has Inner Bumper No
Bellows Number YELLOW

Air Springs
Torque Parts LLC Air Springs

Contact Manufacturer

+1 773 945 0060

Cabin Air Spring for Kenworth Aerocab Mid 1999 & Earlier Model Trucks
Kenworth:  1102-0074
Firestone:  W02-358-7064
Contitech:  SC29-Y064


Extended Height:  9.76"
Compressed Height:  2.40"
BCR:  7.75"
