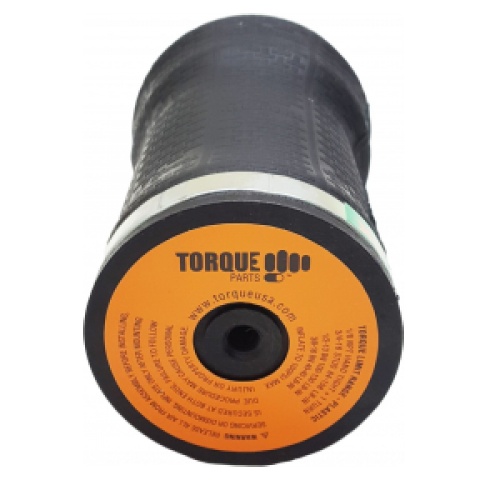

Cabin Air Spring for Mack Trucks

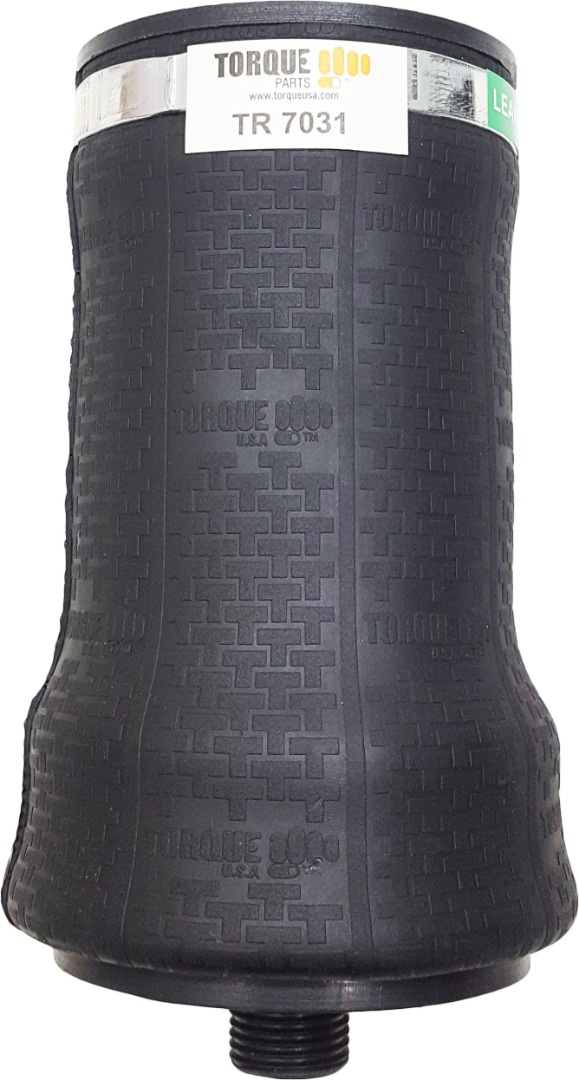

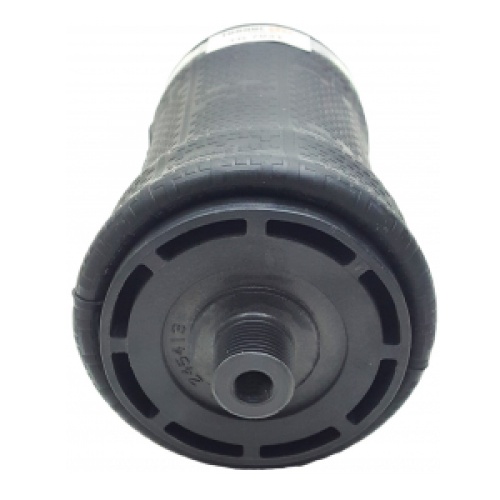

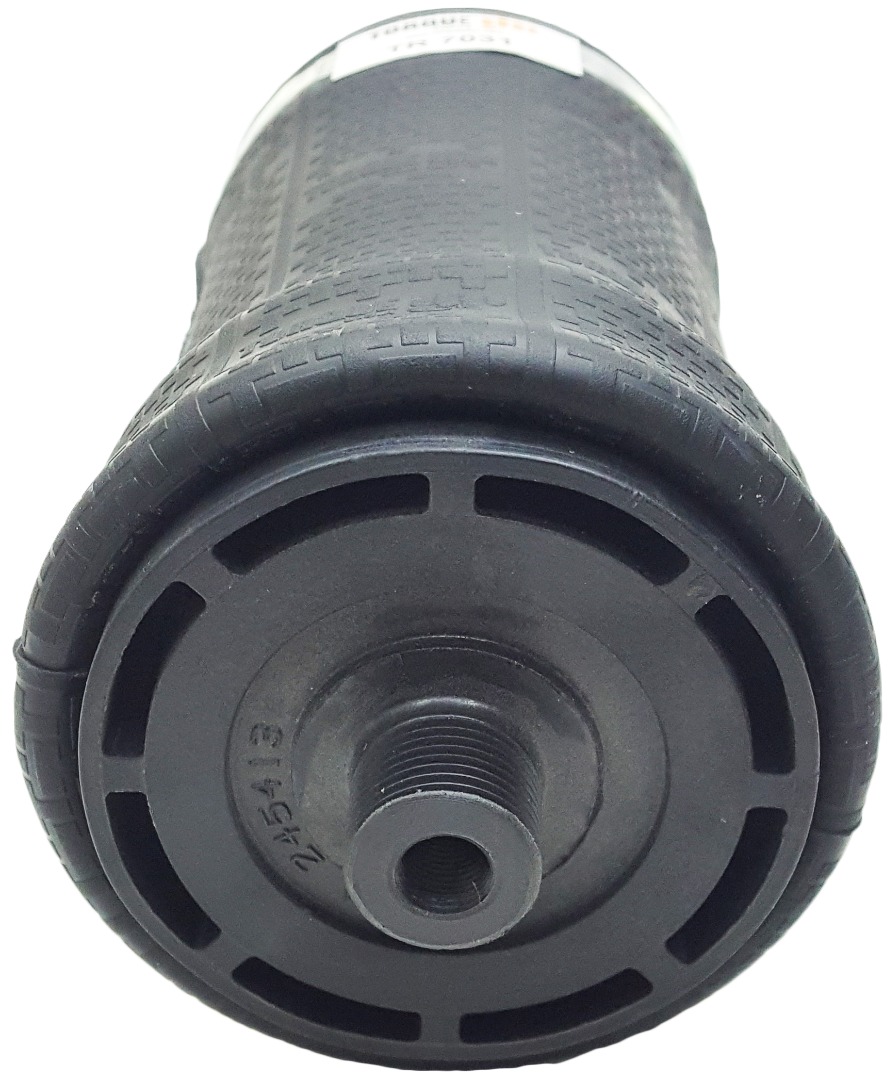

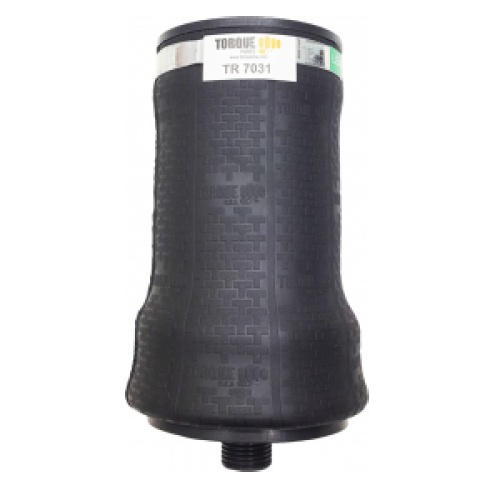

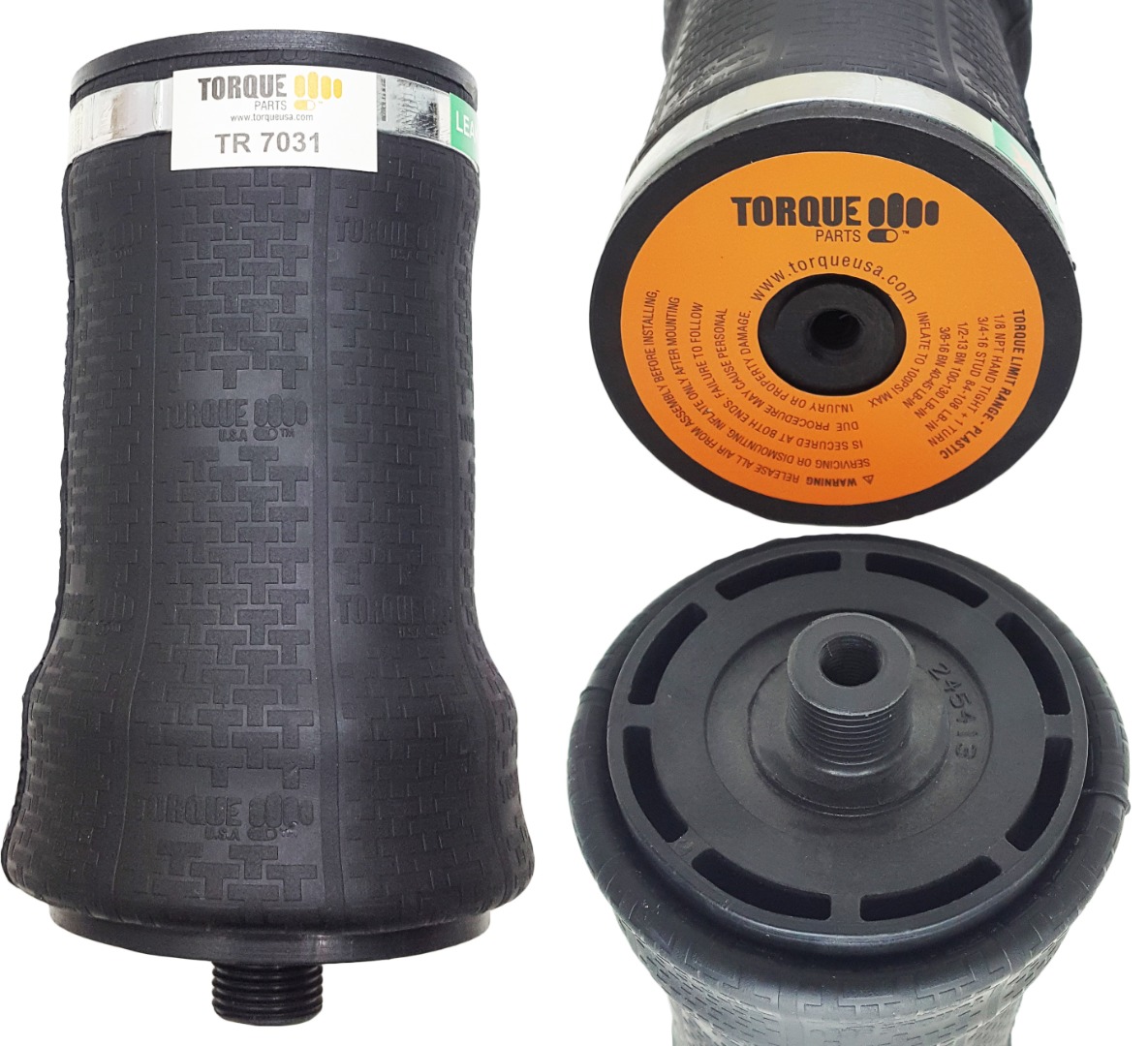

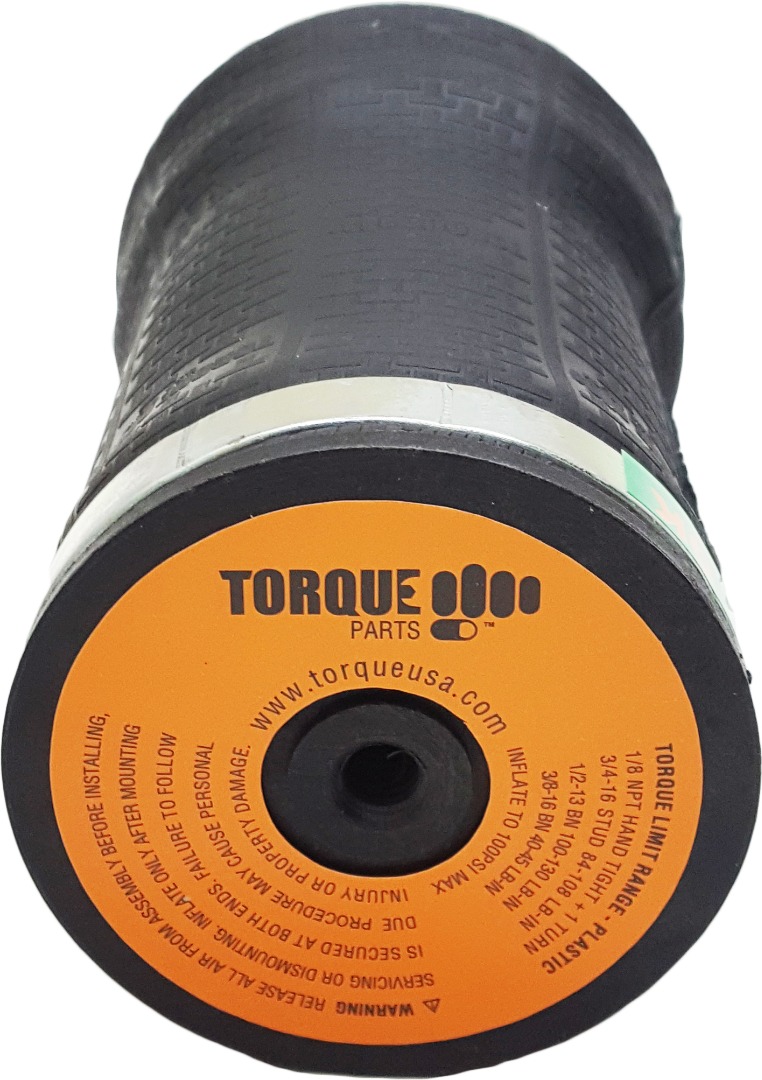

TR7031 Mack Cabin Air Spring TR7031
Air Spring Type
Cabin Air Spring
BCR
7.00

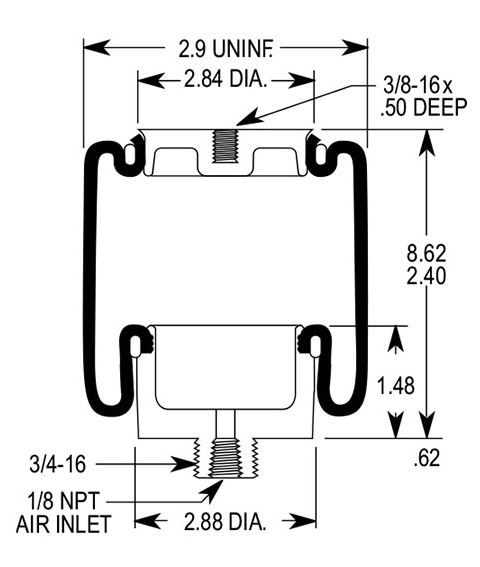

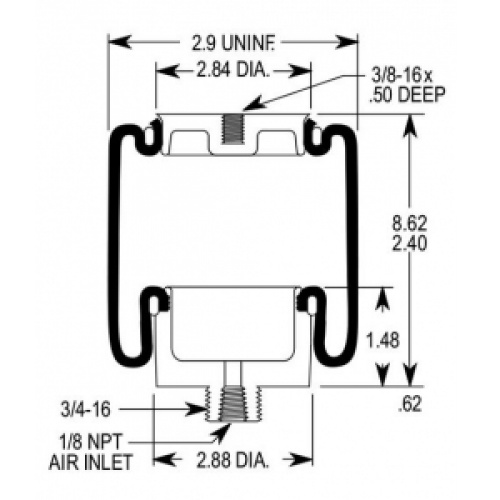

Top Plate Diameter
2.84
Piston Diameter
2.88
Bellows Diameter
2.90
Piston Height
1.48
Piston Material
Aluminum
Max Extended Height
8.62
Bottom Air Inlet Thread Size
1/8 NPT
Minimum Compressed Height
2.40
Air Inlet Type
Male
Air Inlet Height
0.62
Top Plate Mounting Type
Threaded Hole
Top Plate Threaded Hole Quantity
1
Piston Mounting Type
Stud
Piston Stud Quantity
1
Has Inner Bumper
No
Bellows Number
GREEN
| Mack: | 227QS33 |
| Firestone: | W02-358-7031 |
| Goodyear: | 1S4-007 |
| Contitech: | SC29-O001 |
| Extended Height: | 8.62" |
| Compressed Height: | 2.40" |
| BCR: | 7.00" |
