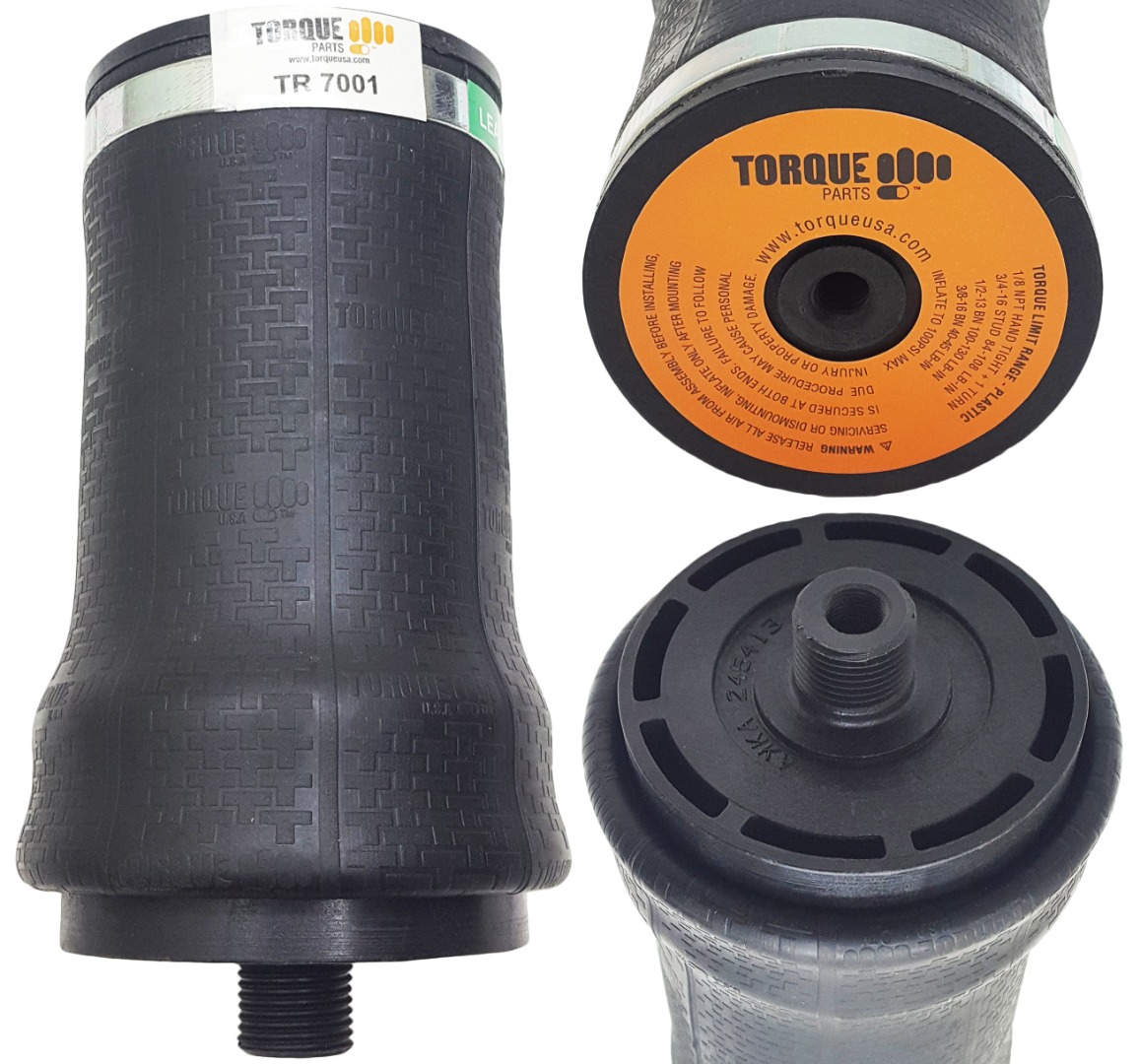

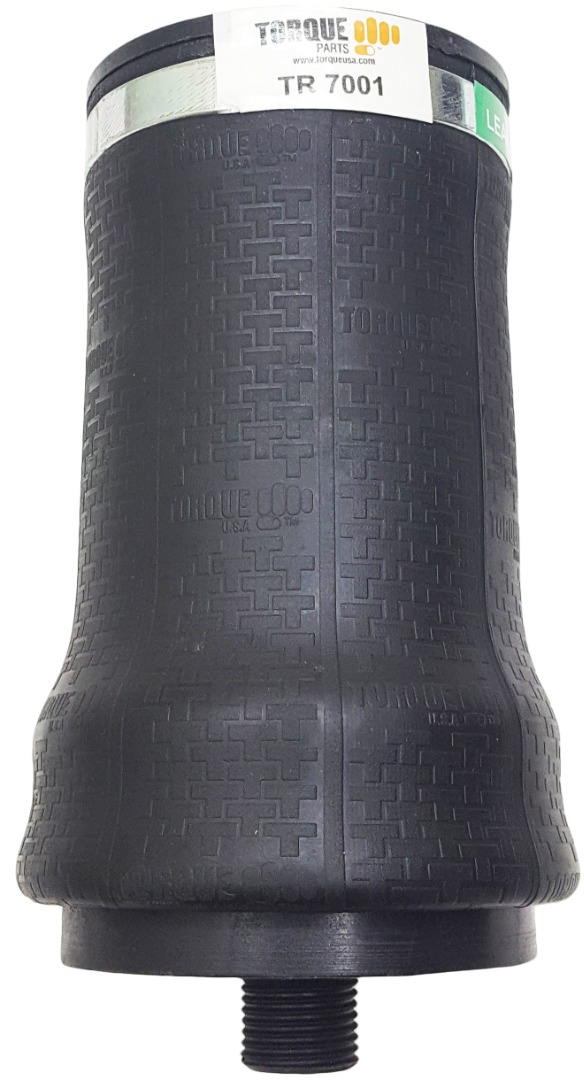

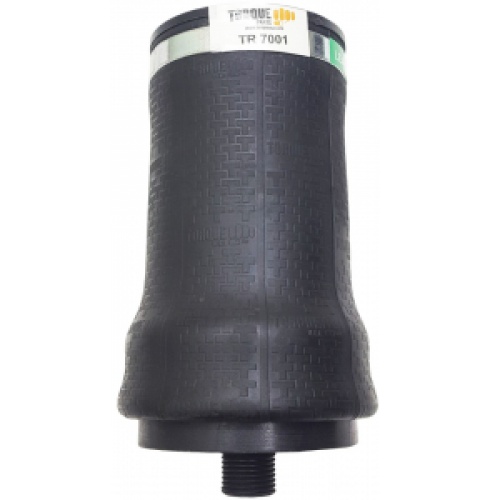

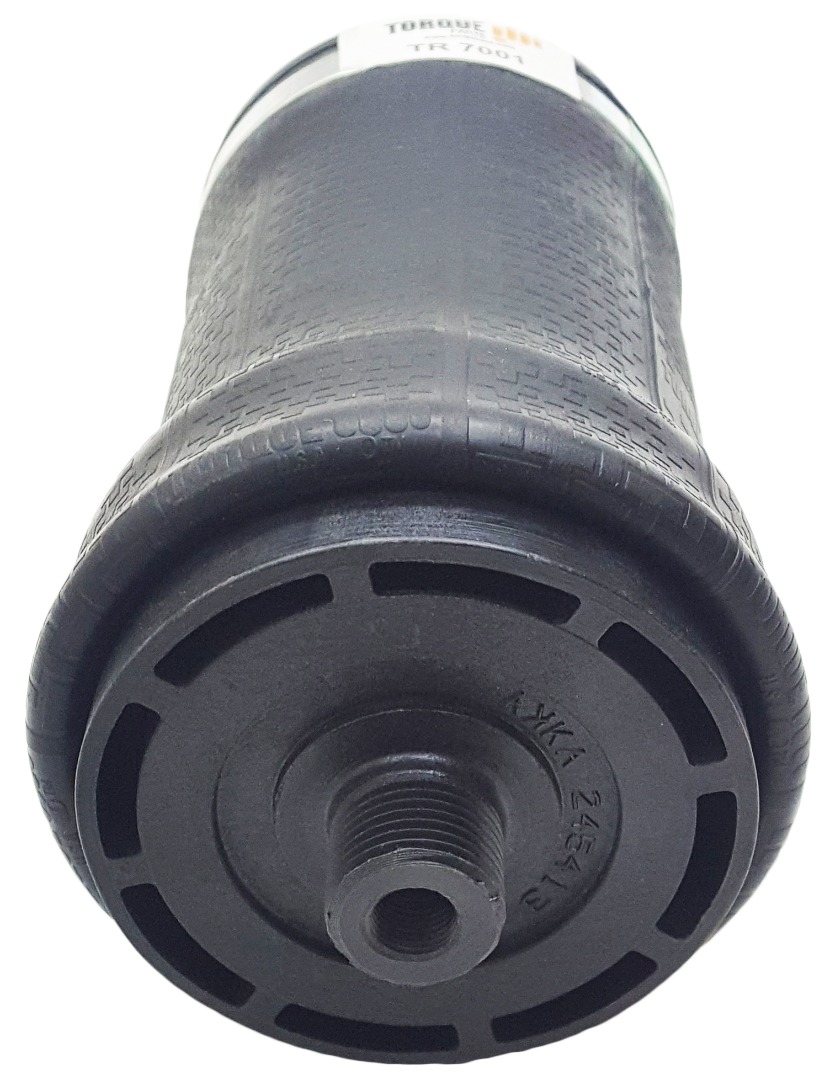

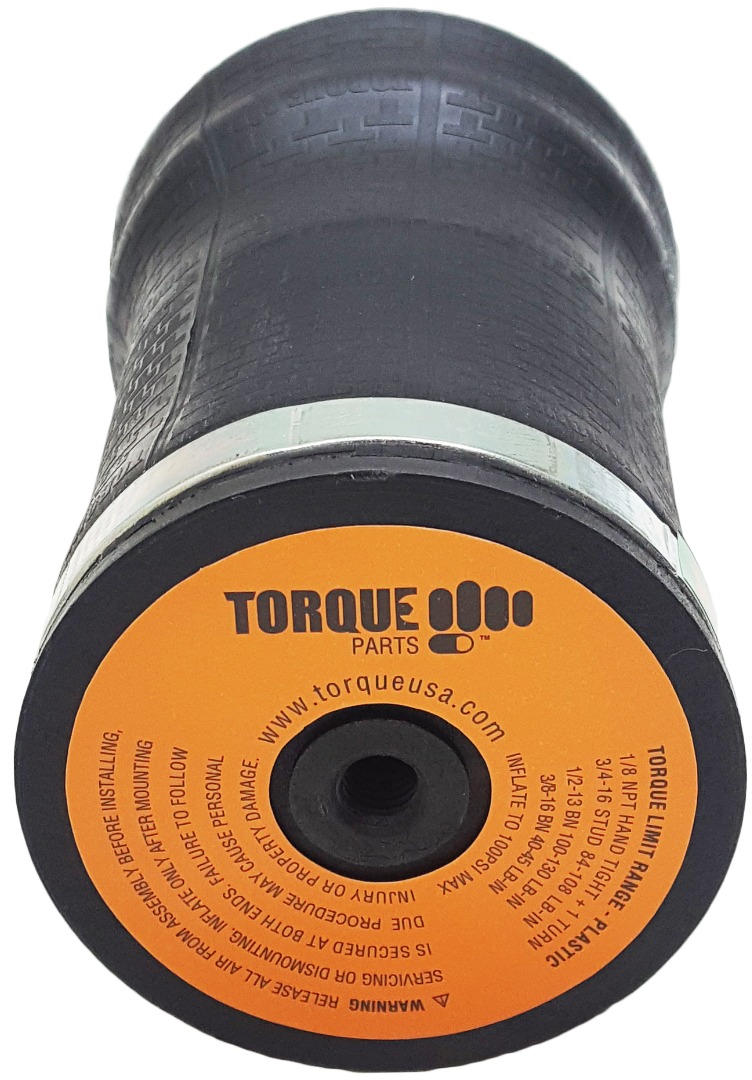

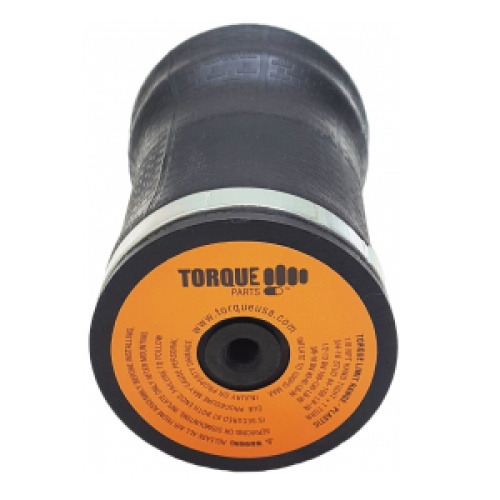

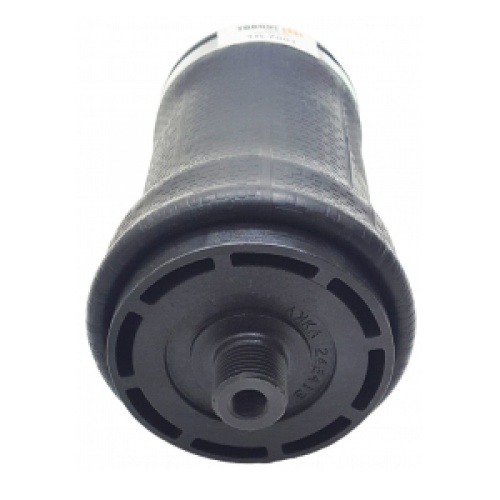

Cabin Air Spring for Kenworth Trucks
TR7001 Cabin Air Spring for Kenworth Trucks TR7001
Air Spring Type
Convoluted Air Spring
Top Plate Diameter
4.50
Piston Diameter
4.50
Bellows Diameter
5.23
Minimum Compressed Height
1.89
Air Inlet Type
Female
Top Plate Mounting Type
Threaded Hole
Top Plate Threaded Hole Quantity
2
Distance Between Top Plate Threaded Holes
1.75
Piston Mounting Type
Threaded Hole
Piston Threaded Hole Quantity
2
Distance Between Piston Threaded Holes
1.75
Has Inner Bumper
No
Bellows Number
16
| Mack: | 227QS33 |
| Kenworth: | T81-1001 |
| Link Manufacturing: | 1102-0020, 1102-0023 |
| Firestone: | W02-358-7001 |
| Goodyear: | 1S4-007 |
| Contitech: | SC29-O001 |
| Extended Height: | 8.46" |
| Compressed Height: | 2.40" |
| BCR: | 6.25" |
