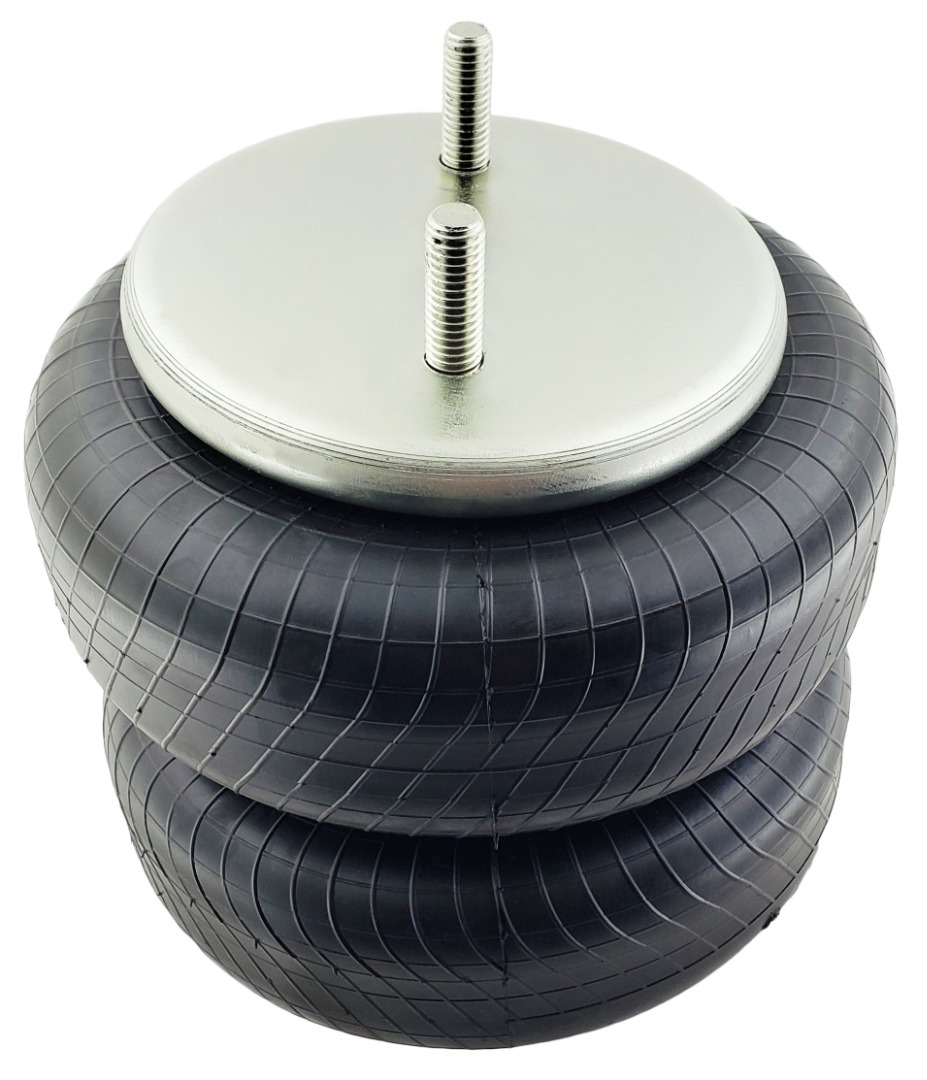

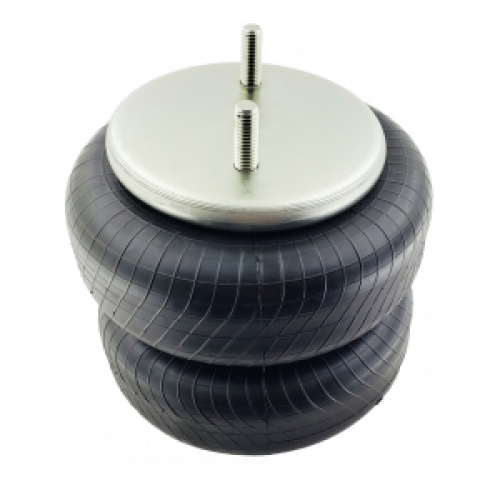

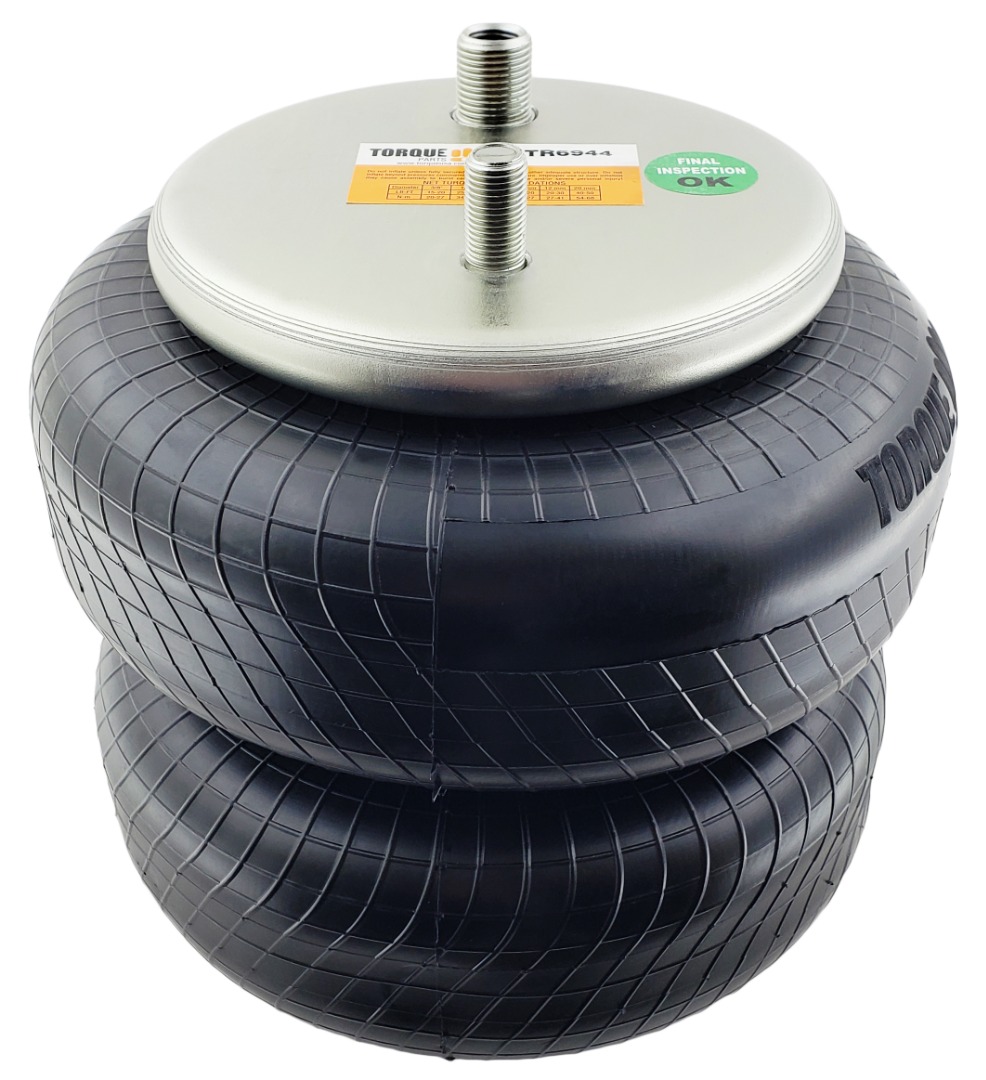

Convoluted Air Spring
TR6944 Convoluted Air Spring TR6944
Air Spring Type
Convoluted Air Spring
Top Plate Diameter
6.31
Piston Diameter
6.31
Bellows Diameter
8.88

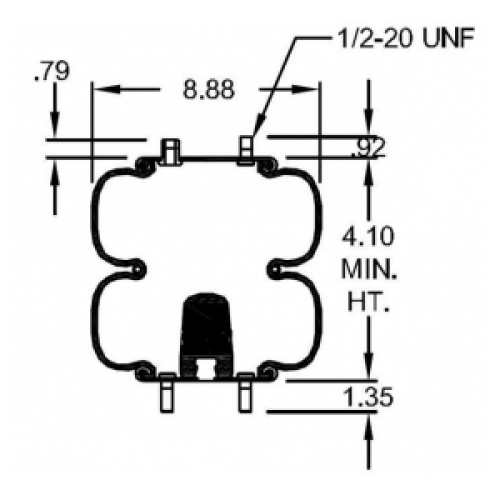

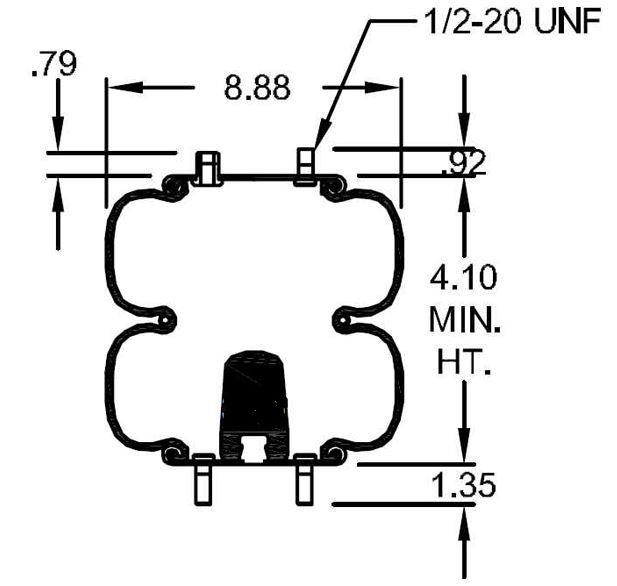

Minimum Compressed Height
4.10
Air Inlet Type
Male
Air Inlet Height
0.79
Top Plate Mounting Type
Air Inlet and Stud
Stud Quantity on Top Plate
1
Top Plate Stud Height
0.92

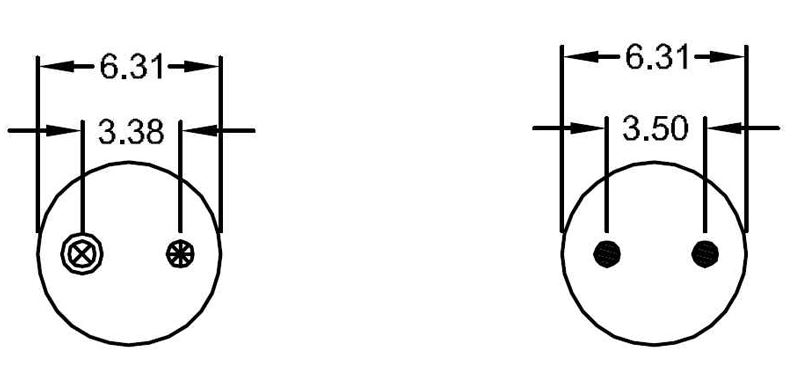

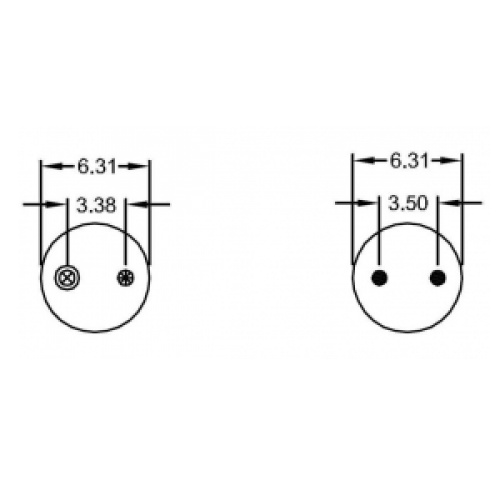

Distance between Top Plate Stud and Air Inlet
3.38
Piston Mounting Type
Stud
Piston Stud Quantity
2
Distance Between Bottom Base Studs
3.50
Has Inner Bumper
Yes
Bellows Number
20-2
| Histeer Industries /Link: | 10307 |
| Watson & Chalin: | AS-0115G |
| Triangle: | 4454 |
| Firestone: | W01-358-6944 |
| Goodyear: | 2B9-252 |
| Contitech: | FD 200-25 454 |
| Compressed Height: | 4.10" |
| Top Plate Width: | 6.31" |
| Piston Width: | 6.31" |
| Weight: | 8.6 lbs |
