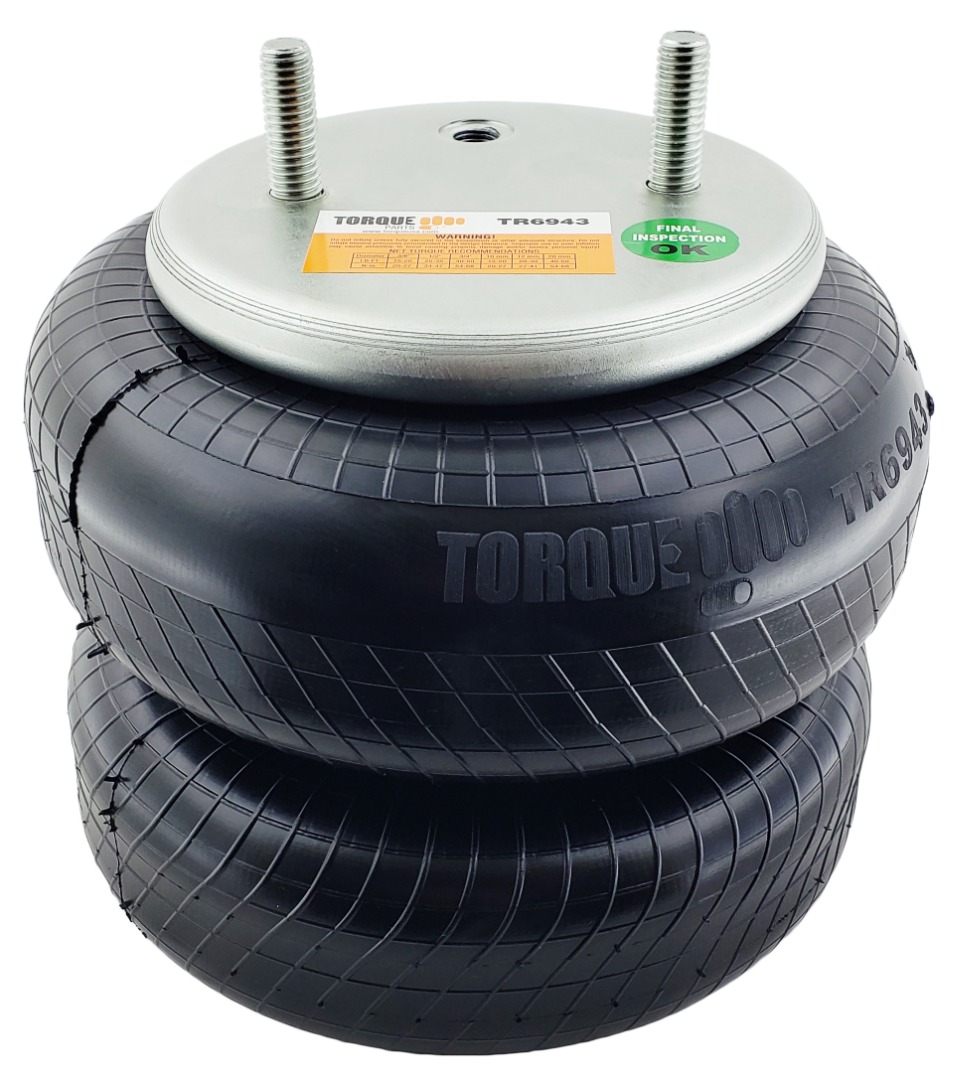

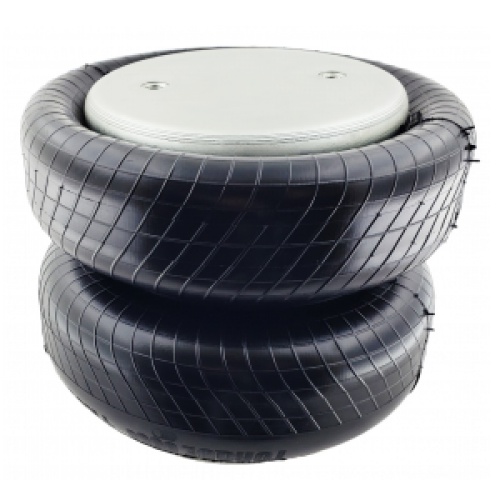

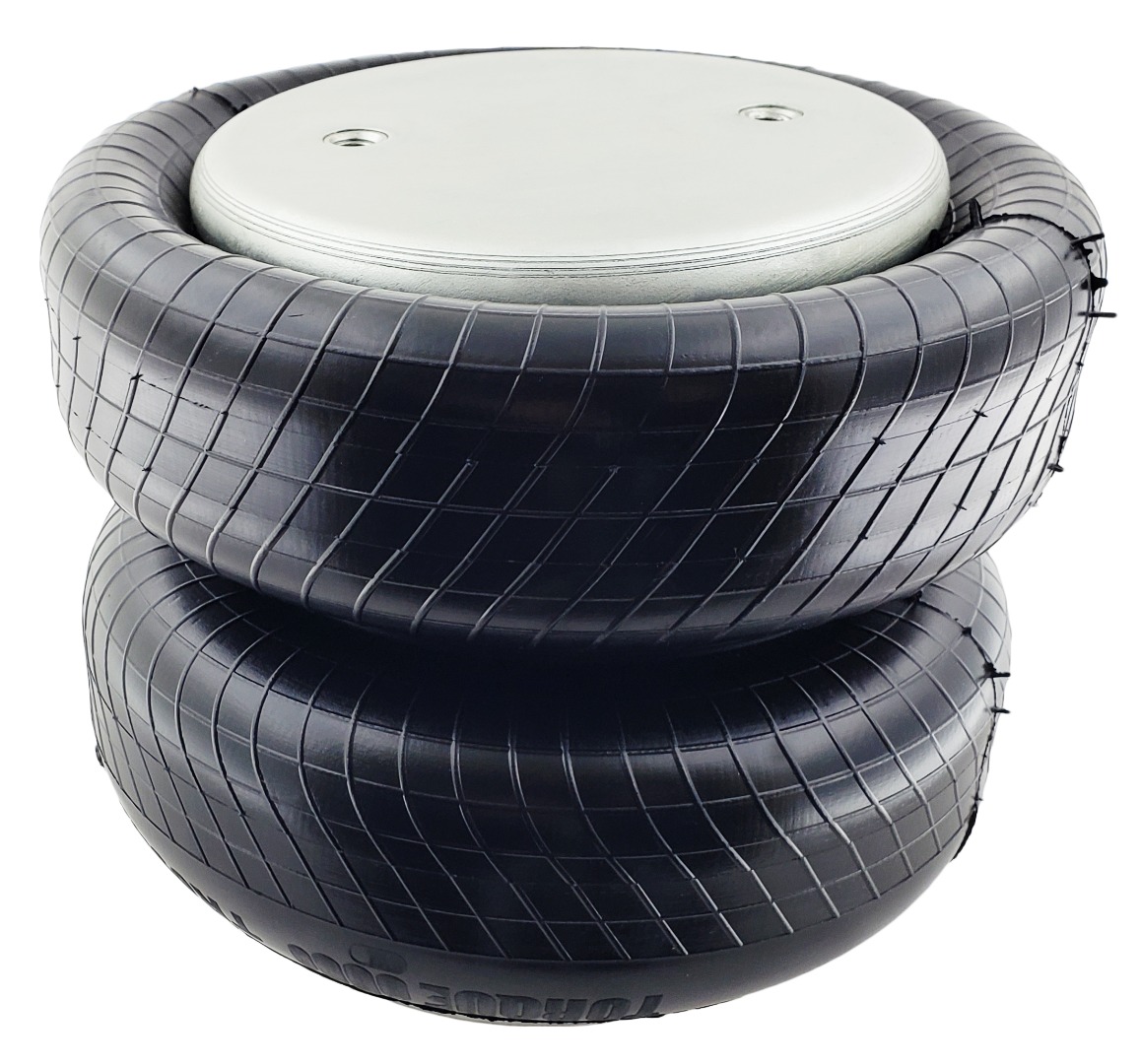

Convoluted Air Spring
TR6943 Convoluted Air Spring TR6943
Air Spring Type
Convoluted Air Spring
Top Plate Diameter
6.31
Piston Diameter
6.31

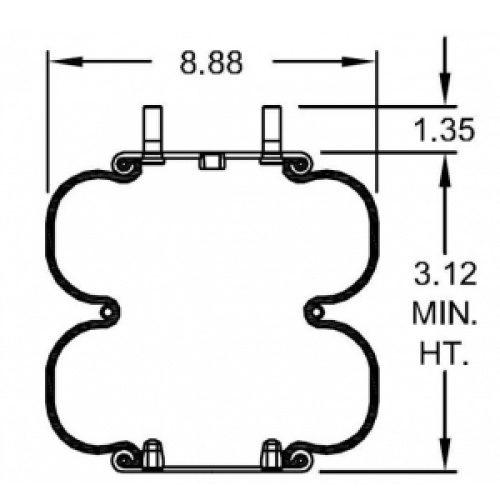

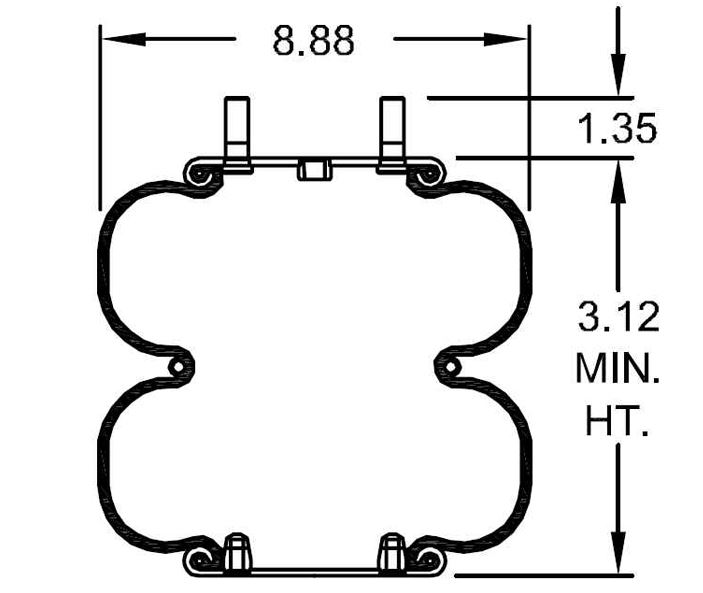

Bellows Diameter
8.88
Minimum Compressed Height
3.12
Air Inlet Type
Female
Top Plate Mounting Type
Stud
Stud Quantity on Top Plate
2
Top Plate Stud Height
1.35

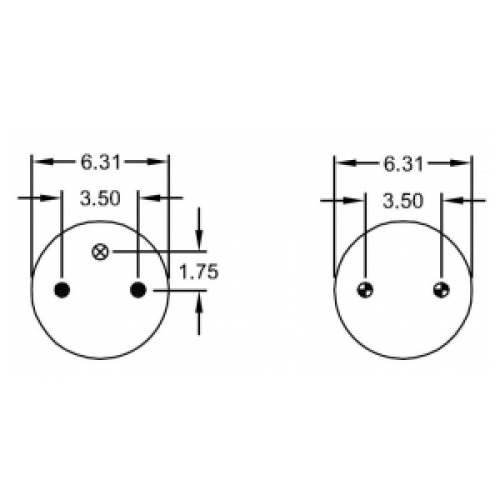

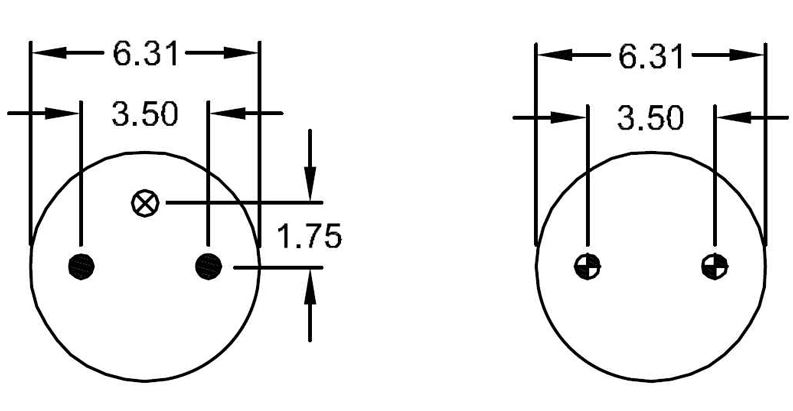

Distance Between Top Plate Studs
3.50
Piston Mounting Type
Threaded Hole
Piston Threaded Hole Quantity
2
Distance Between Piston Threaded Holes
3.50
Has Inner Bumper
No
Bellows Number
20-2
| Watson & Chalin: | AS-0041 |
| SAF Holland: | 905-57-237 |
| Triangle: | 4426 |
| Firestone: | W01-358-6943 |
| Goodyear: | 2B9-250 |
| Contitech: | FD 200-25 426 |
| Compressed Height: | 3.12" |
| Top Plate Width: | 6.31" |
| Piston Width: | 6.31" |
| Weight: | 8.1 lbs |
