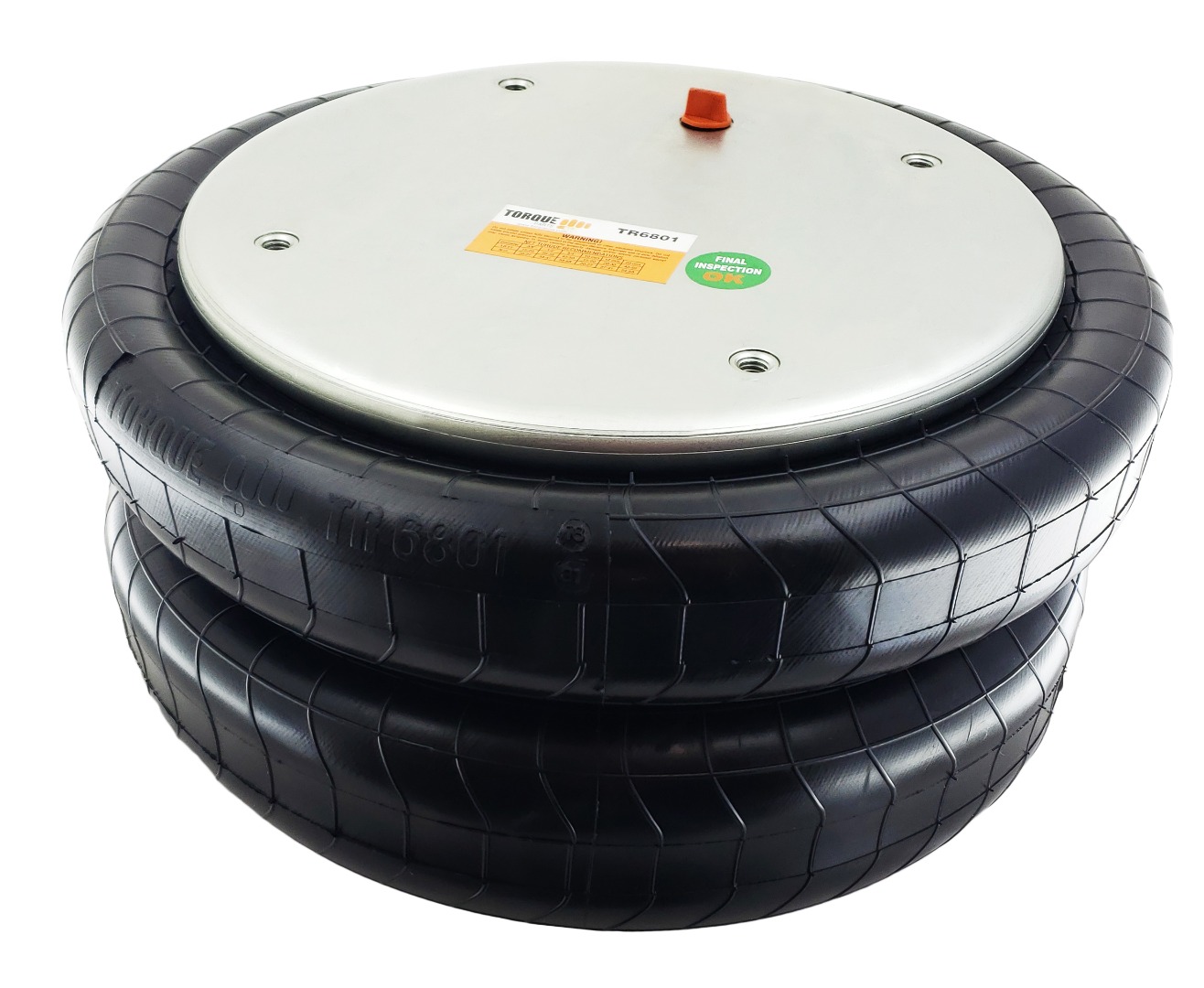

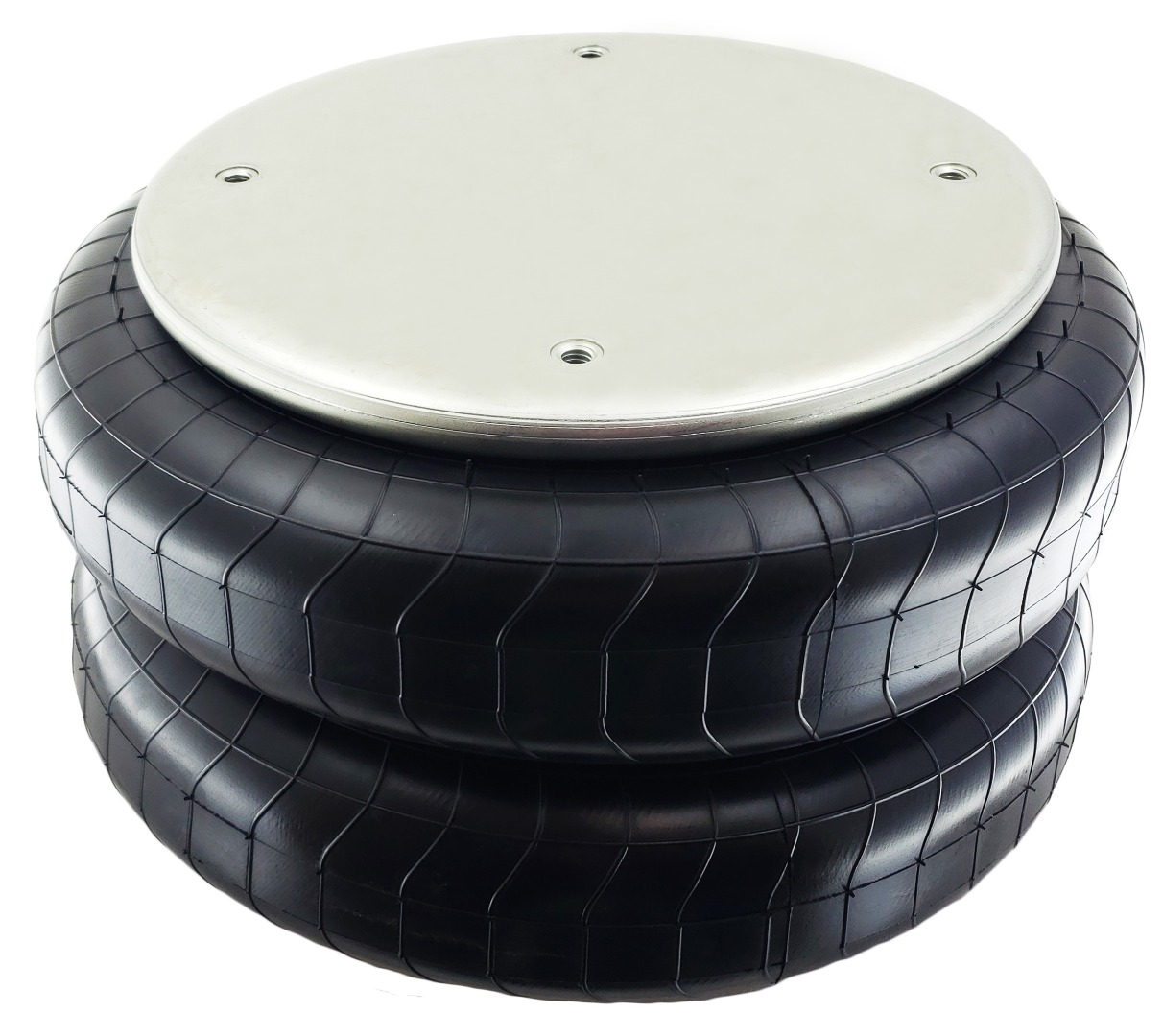

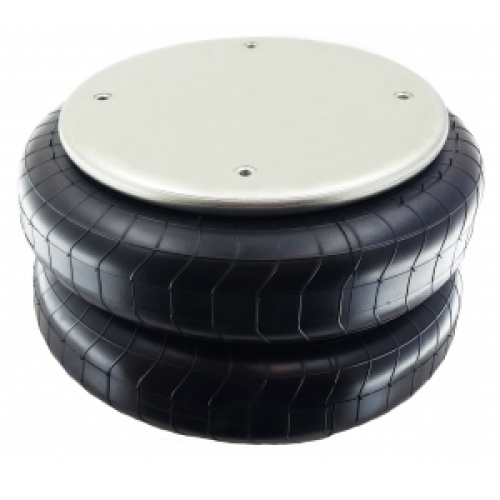

Convoluted Air Spring
TR6801 Convoluted Air Spring TR6801
Air Spring Type
Convoluted Air Spring
Top Plate Diameter
11.31
Piston Diameter
11.31
Bellows Diameter
14.50
Minimum Compressed Height
3.80

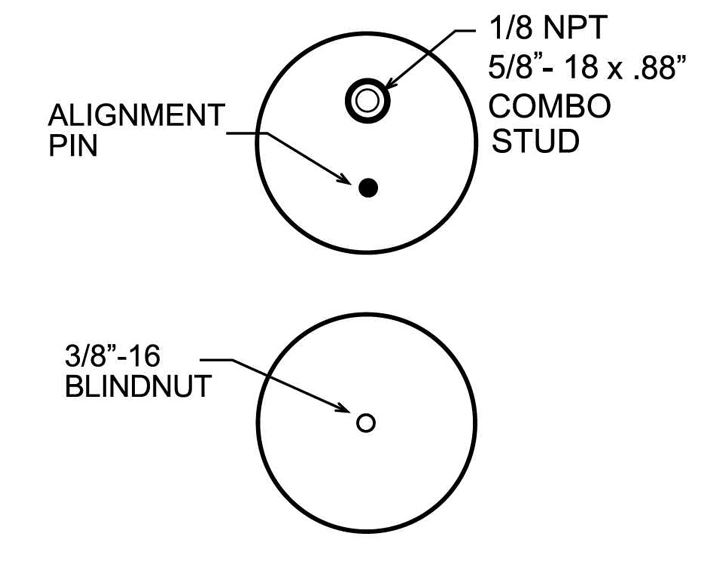

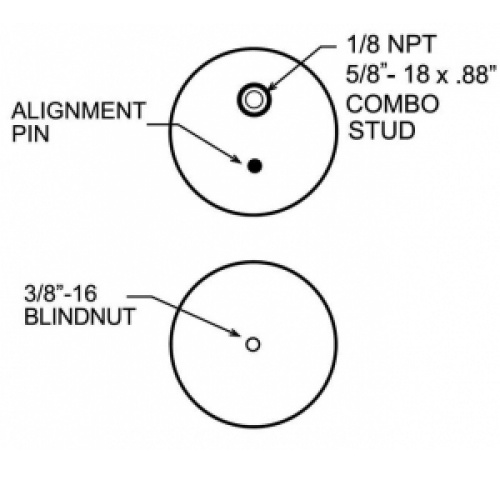

Air Inlet Type
Female
Top Plate Mounting Type
Threaded Hole
Top Plate Threaded Hole Quantity
4
Distance Between Top Plate Threaded Holes
6.25
Piston Mounting Type
Threaded Hole
Piston Threaded Hole Quantity
4
Distance Between Piston Threaded Holes
6.25
Has Inner Bumper
Yes
Bellows Number
21-1
| Firestone: | W01-358-6801 |
| Goodyear: | 2B14-365 |
| Watson & Chalin: | AS-0021 |
| Ridewell: | 1003586801C |
| Hendrickson: | S-2734, B-2734 |
| Triangle: | 4451 |
| Contitech: | FD530-30451 |
| Compressed Height: | 3.80" |
| Top Plate Width: | 11.31" |
| Piston Width: | 11.31" |
| Weight: | 17.30 lbs |
