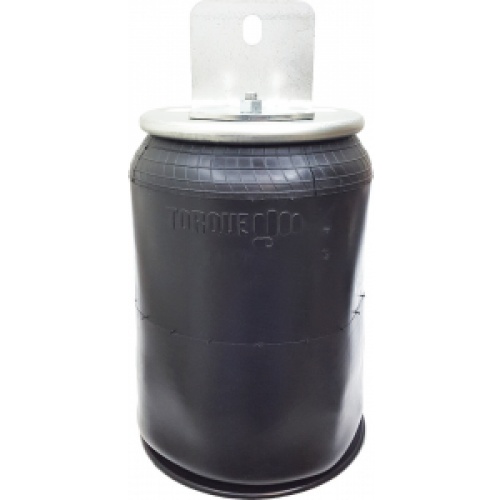

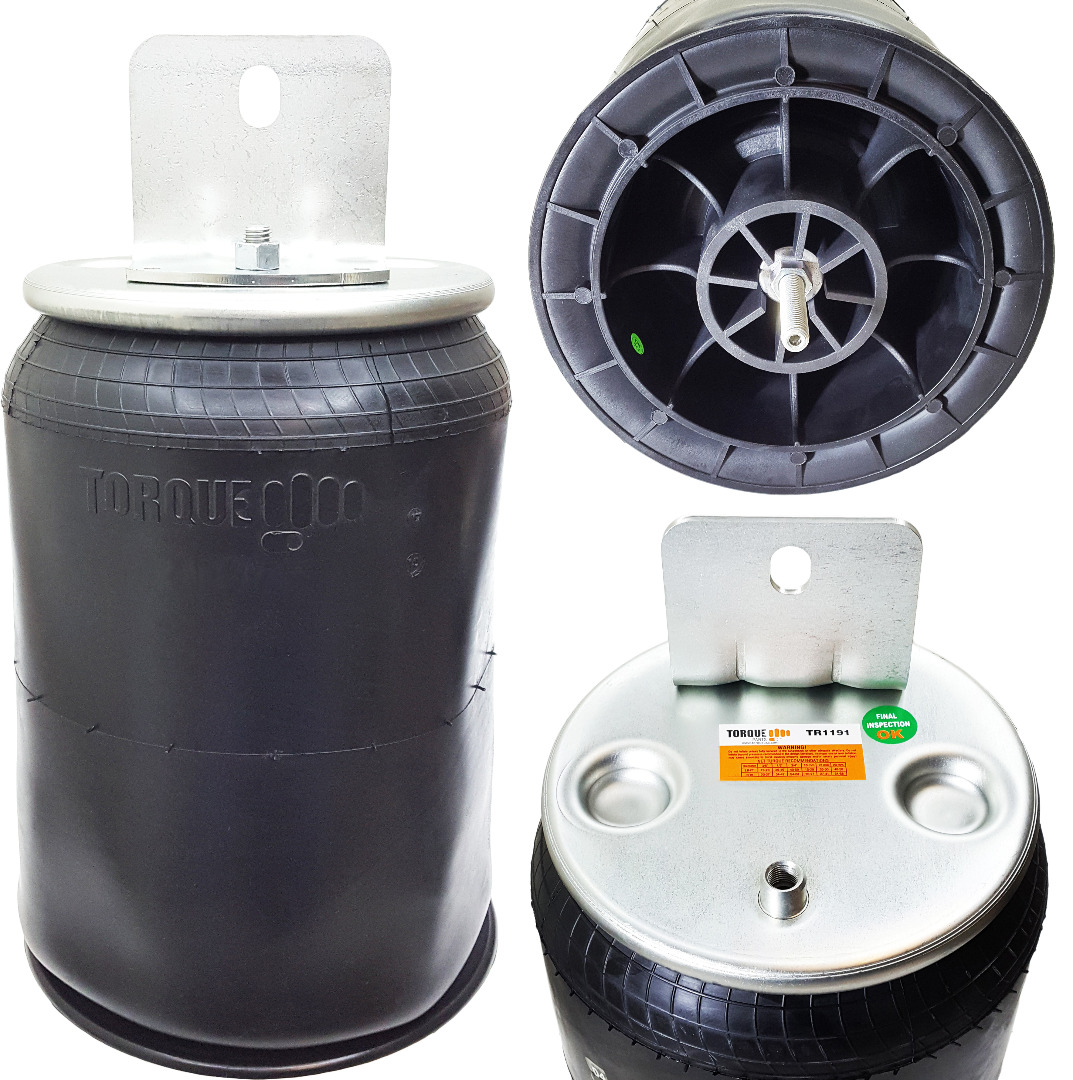

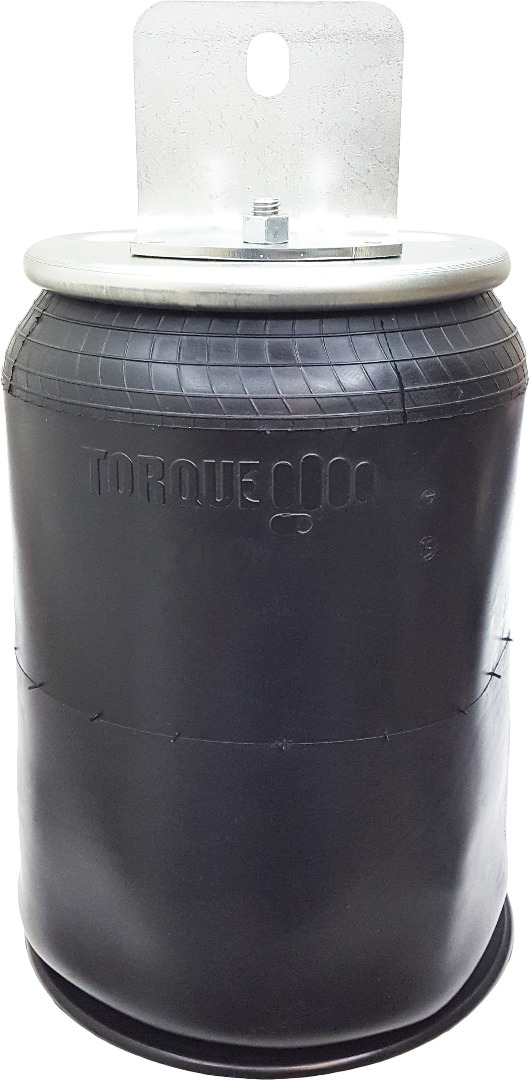

TR1191 Navistar Air Spring

TR1191 Navistar Air Spring TR1191

Air Spring Type Reversible Air Spring

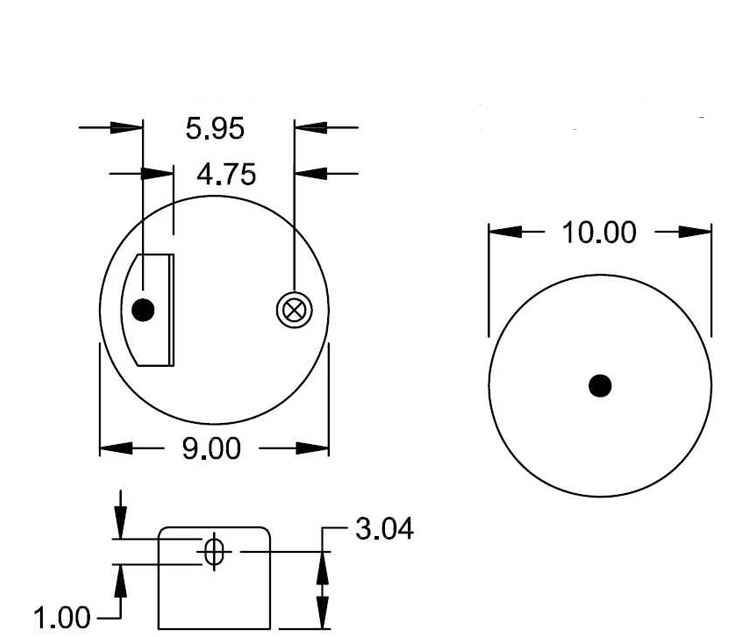

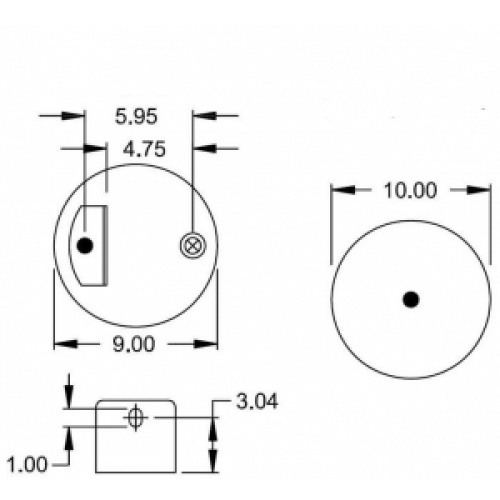

Top Plate Diameter 9.00
Piston Diameter 10.00
Bellows Diameter 10.00
Piston Height 4.65
Piston Material Composite

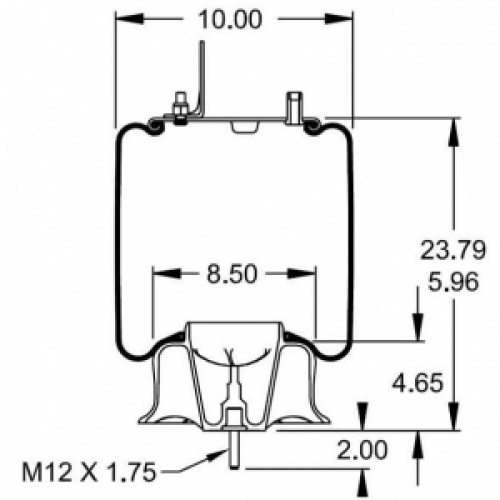

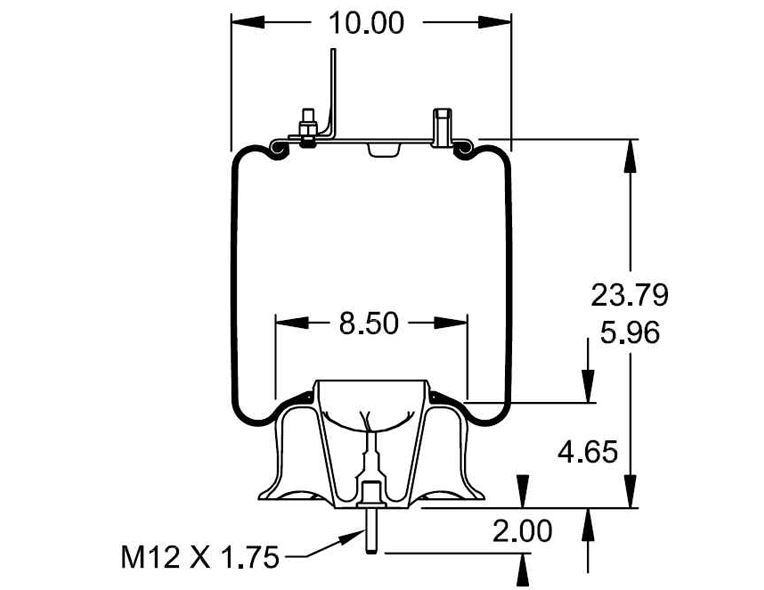

Max Extended Height 23.79
Minimum Compressed Height 5.90
Air Inlet Type Male

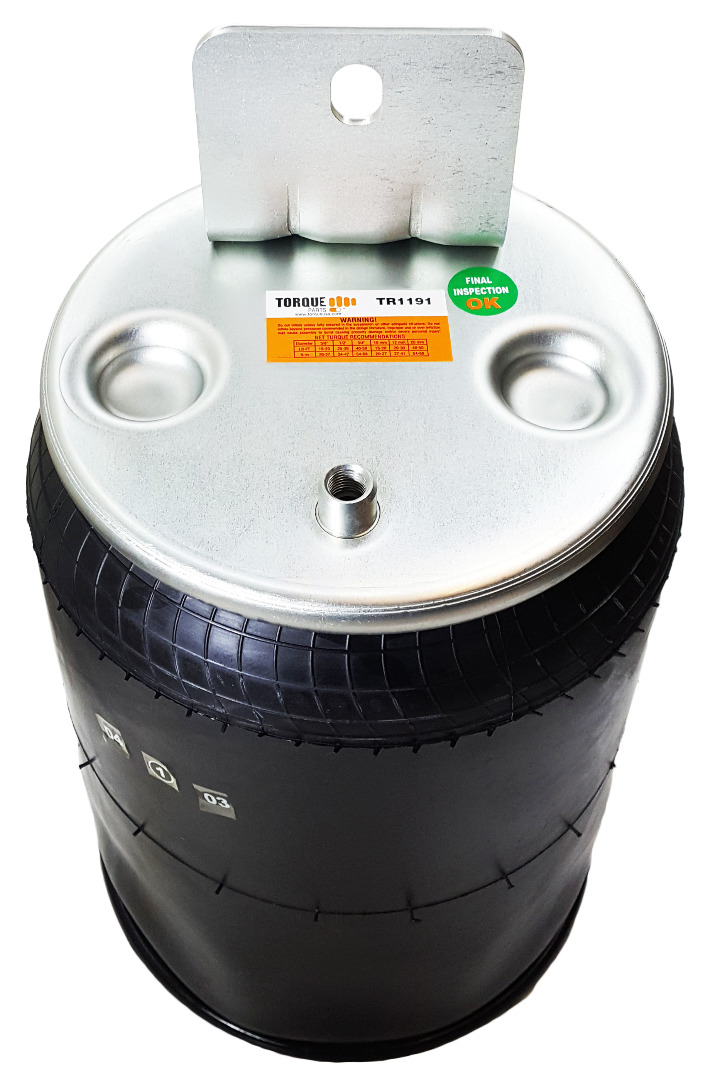

Top Plate Mounting Type Bracket and Air Inlet
Stud Quantity on Top Plate 1
Distance Between Bracket Mounting and Air Inlet 4.75

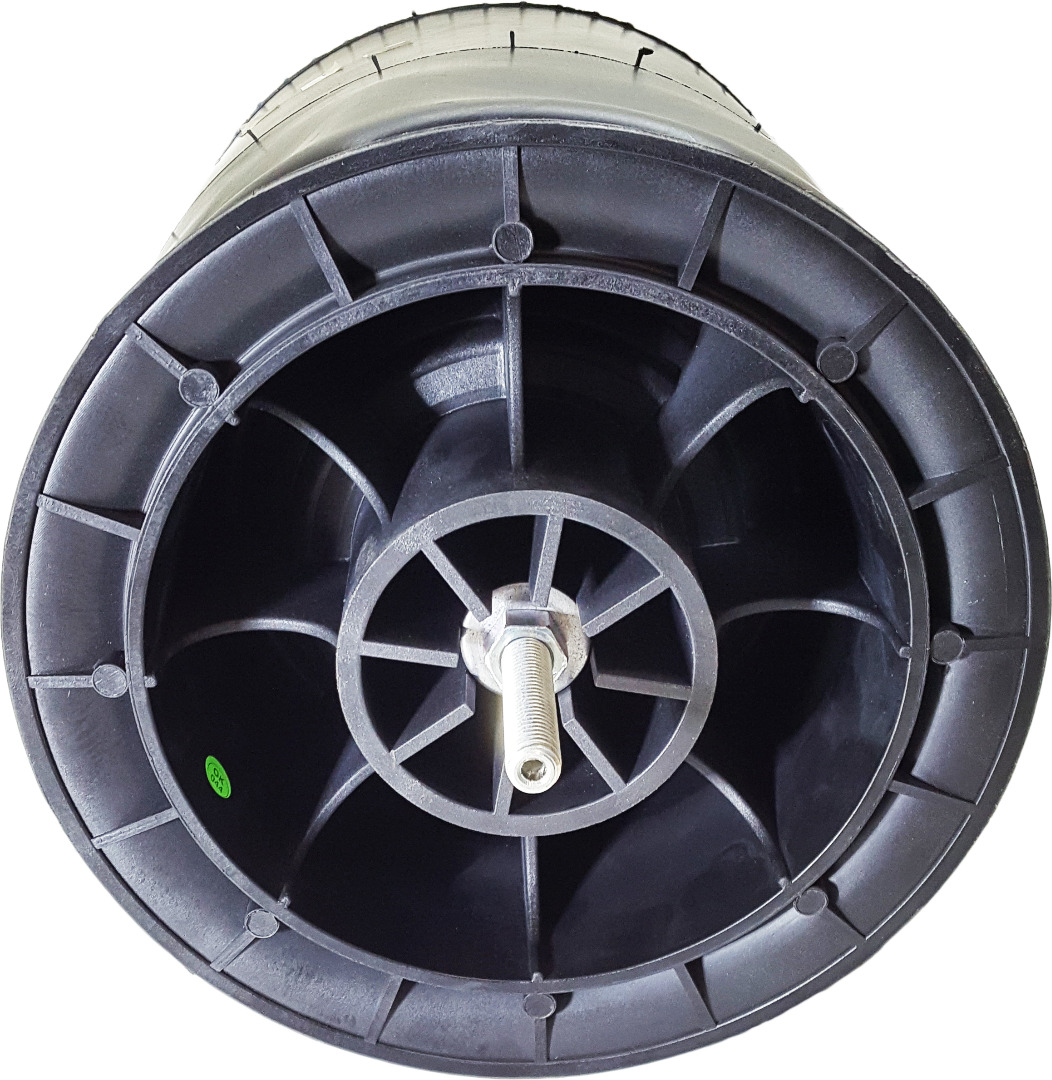

Piston Mounting Type Stud
Piston Stud Quantity 1
Has Inner Bumper No
Bellows Number 1T15XR9

Air Springs
Torque Parts LLC Air Springs

Contact Manufacturer

+1 773 945 0060

Air Spring for Navistar/International Trucks
Navistar: 3541731C1,
Firestone: W01-358-9875, W01-358-1191, W01-358-1192
Goodyear: 1R12-432, 1R12-689
Contitech: 9 10B-195P 889
Extended Height: 23.79"
Compressed Height: 5.96"
Top Plate Width: 9.00"
Piston Width: 10.00"
Weight: 14.9 lbs
